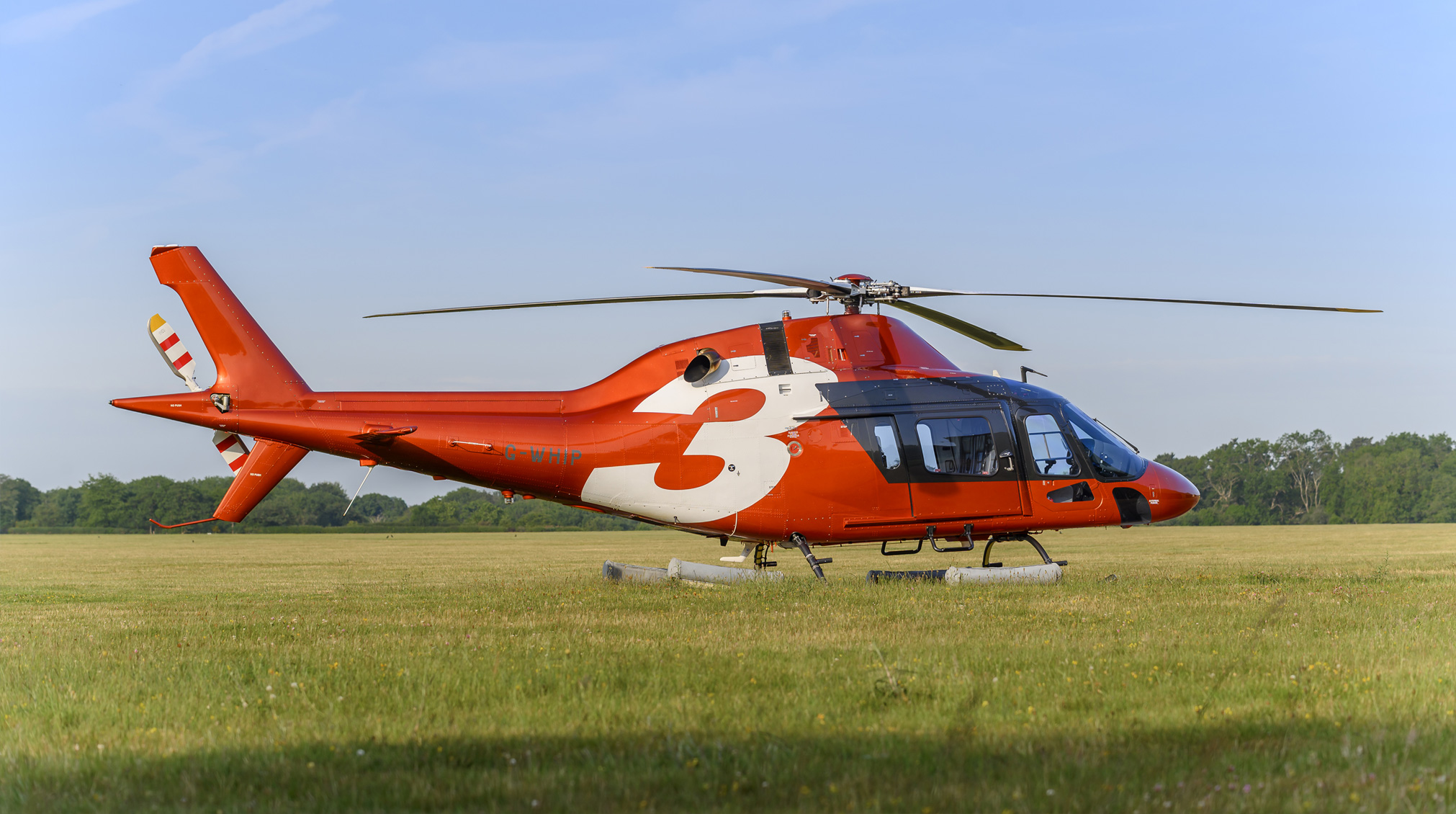

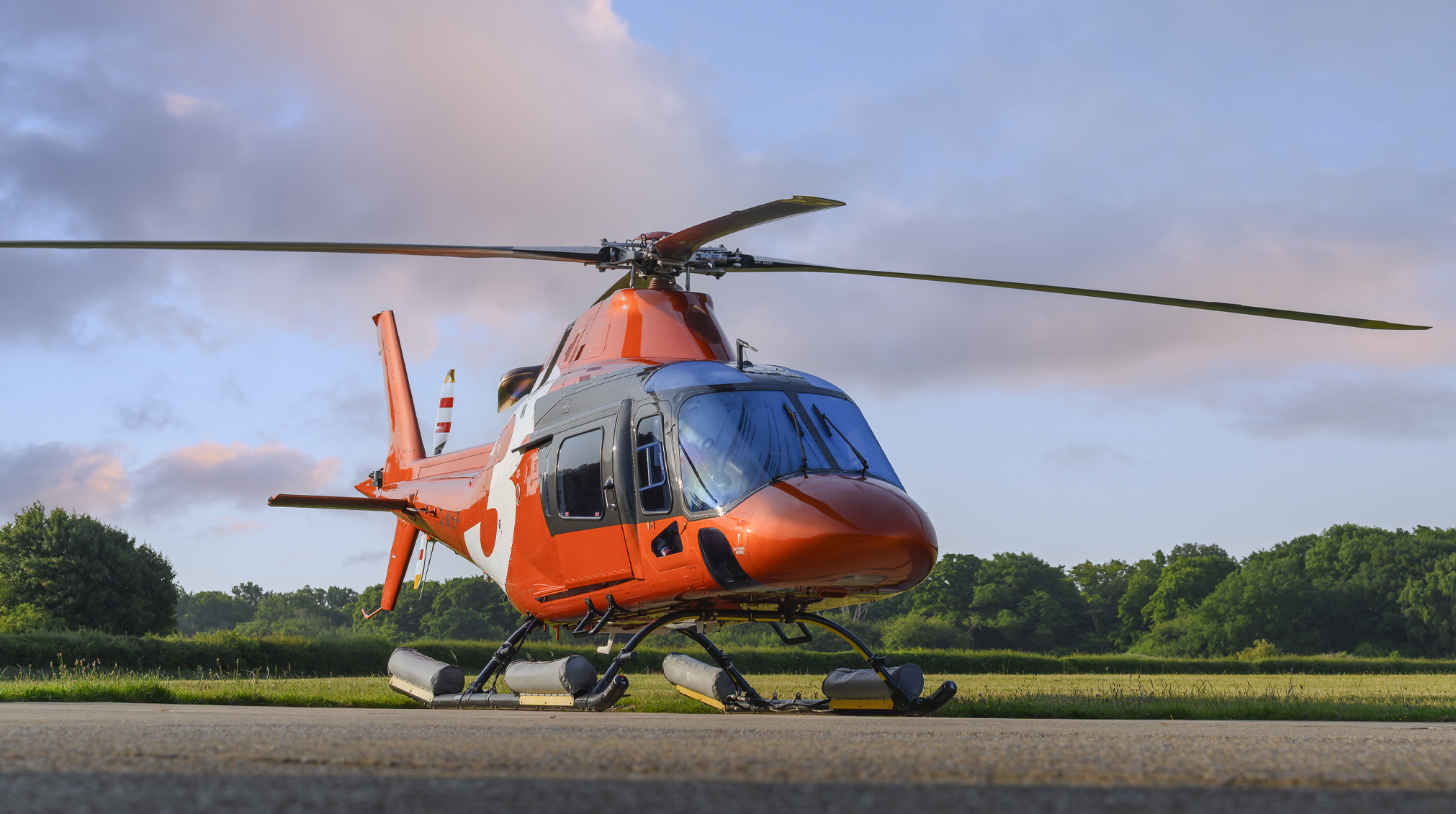

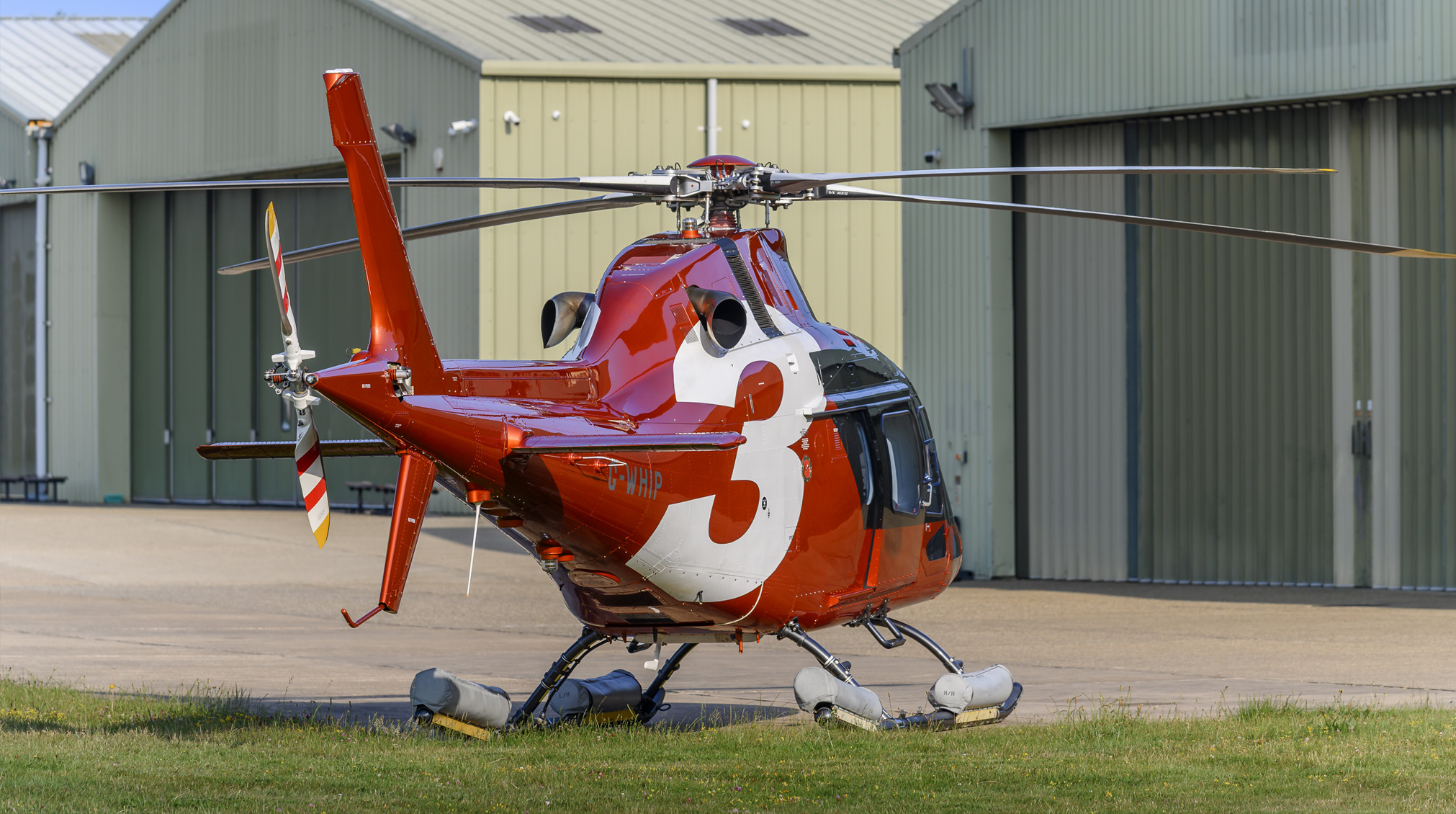

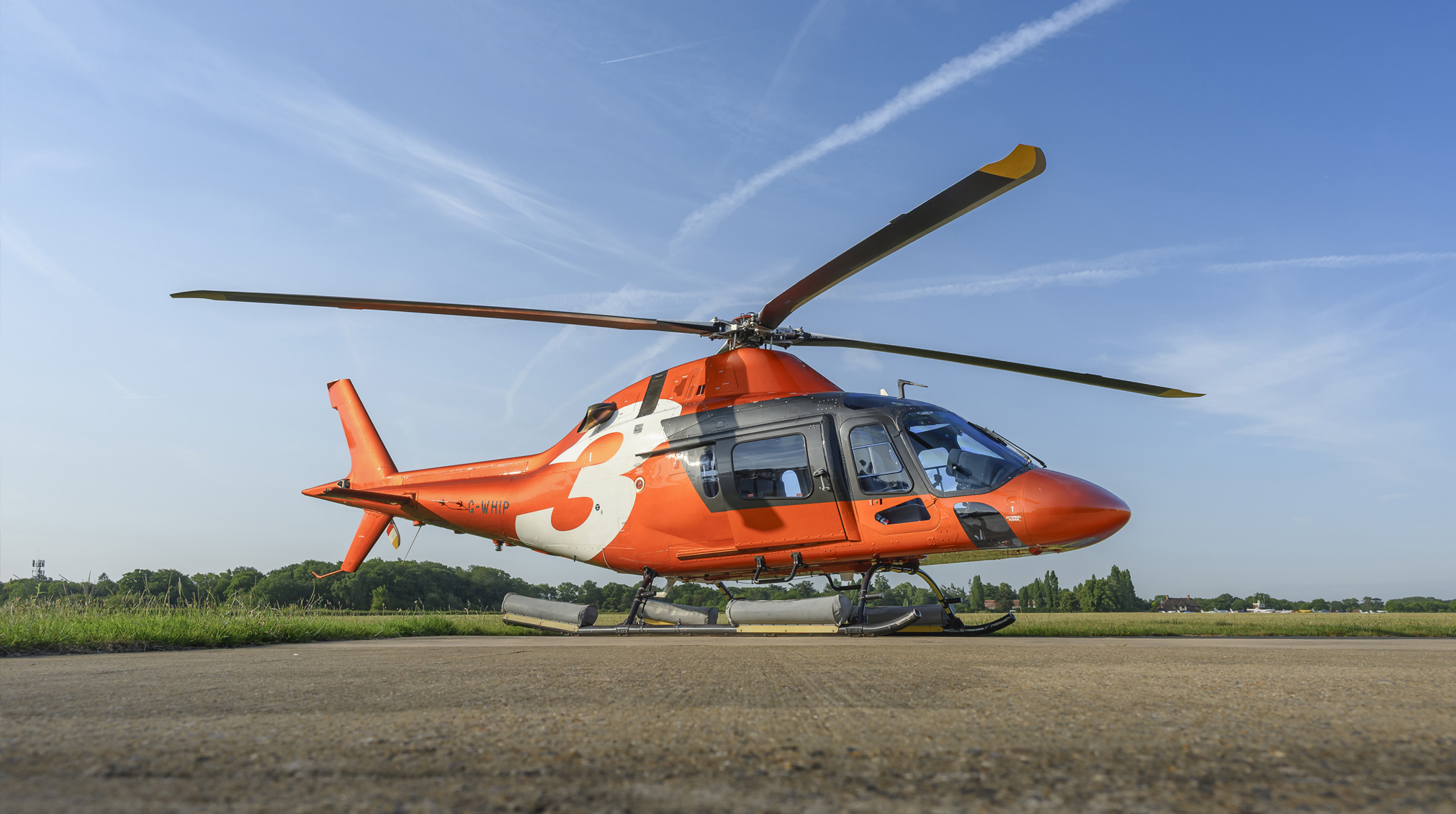

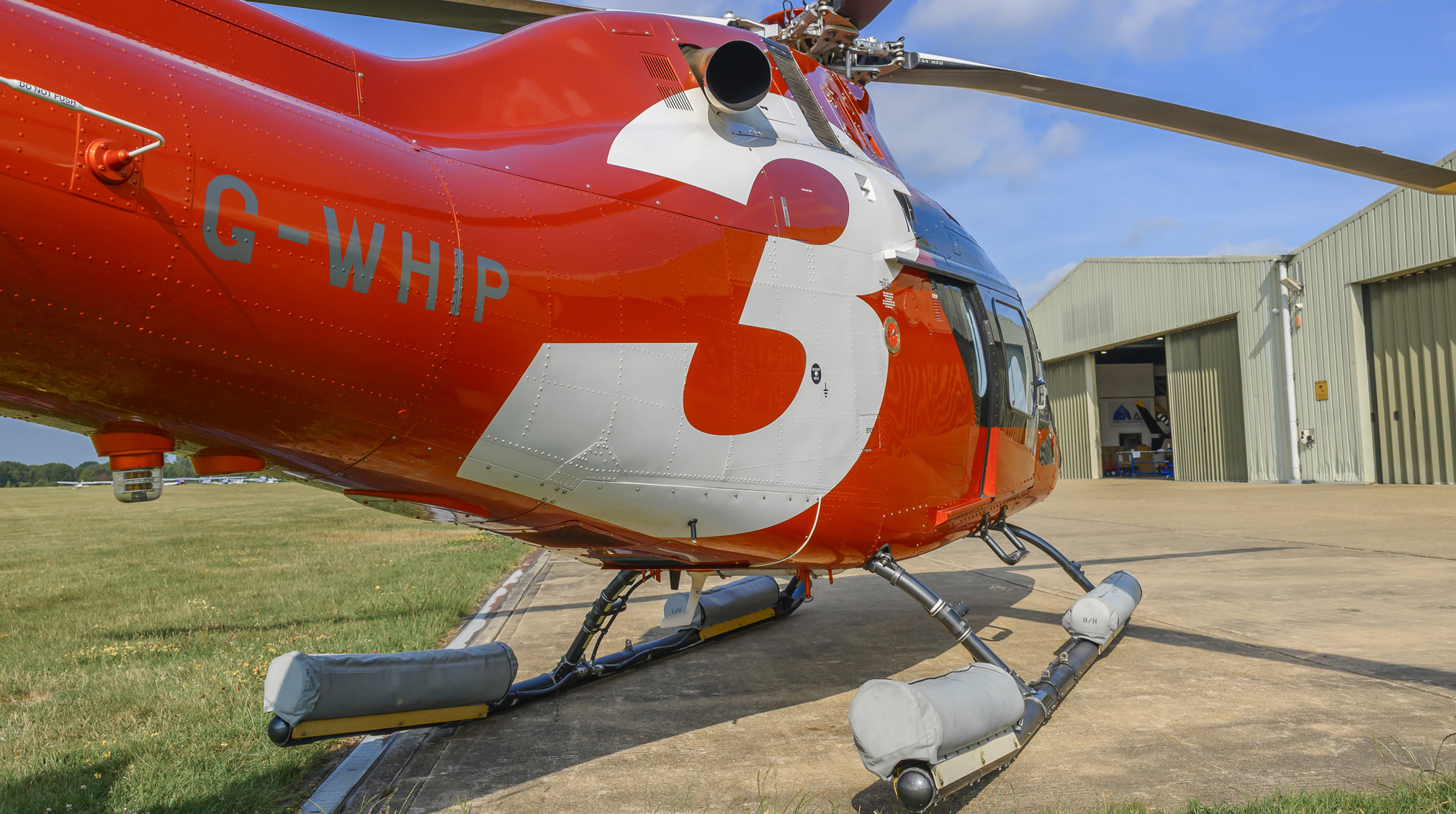

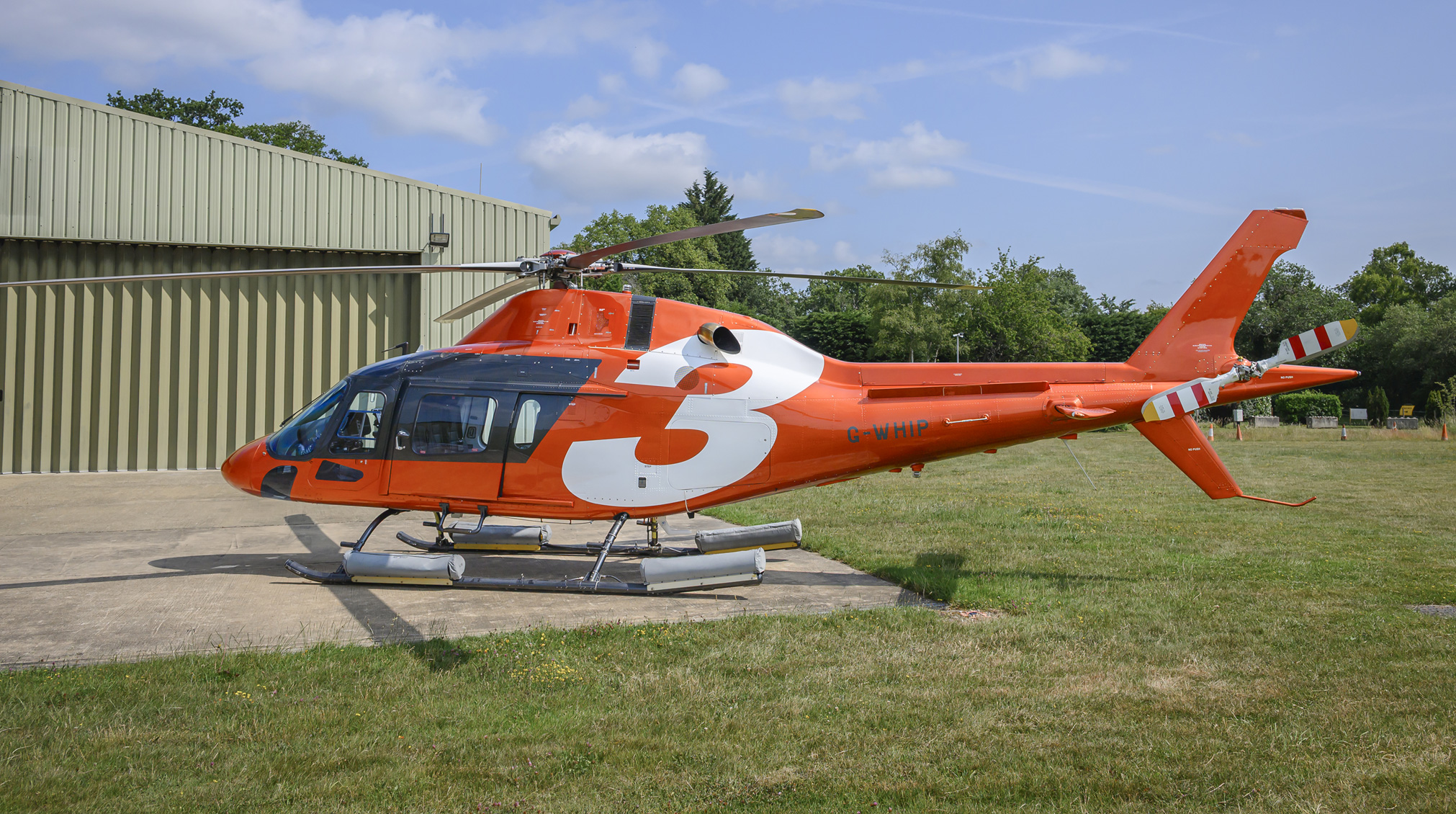

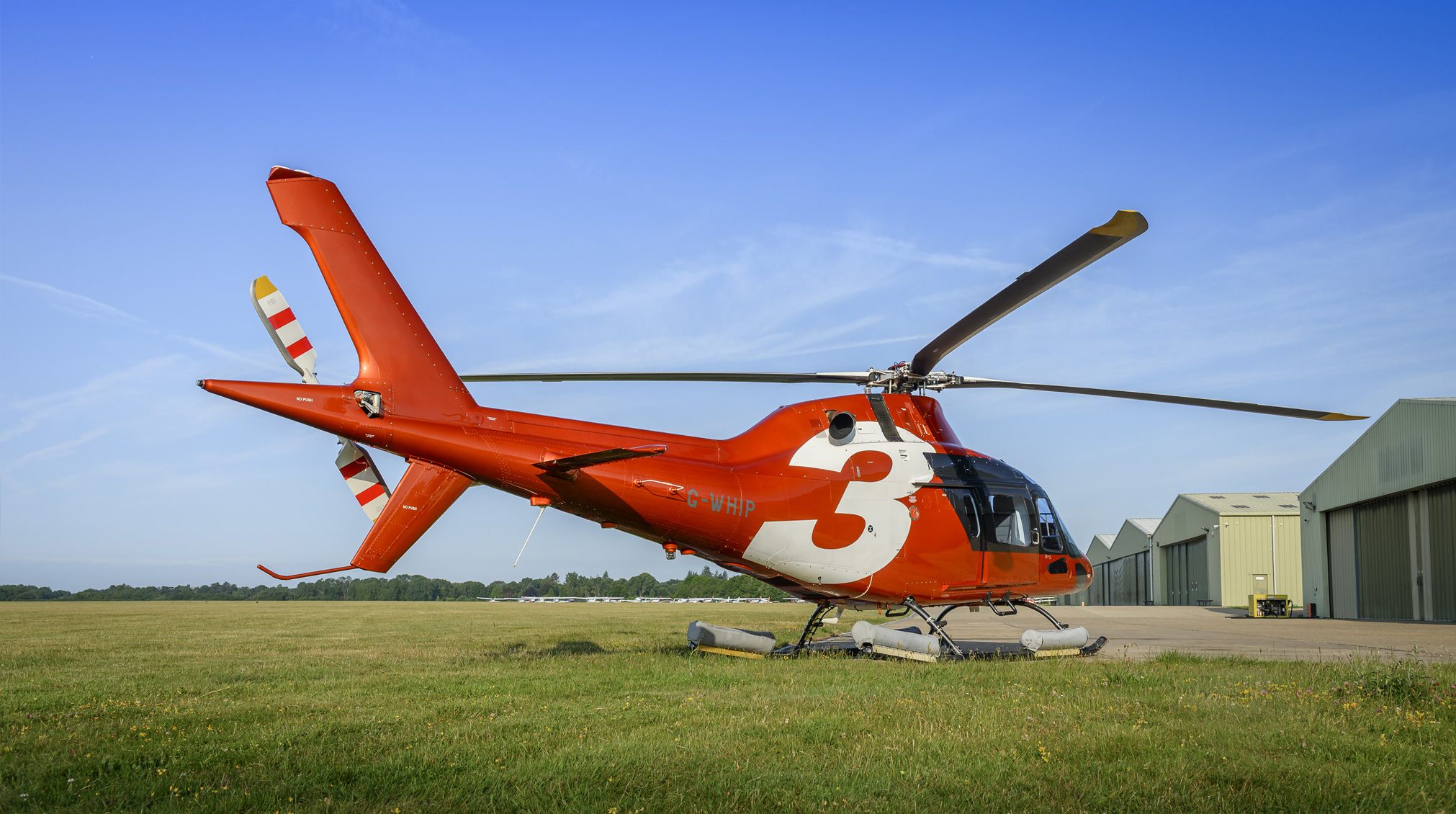

2020 Leonardo A119Kx

Details

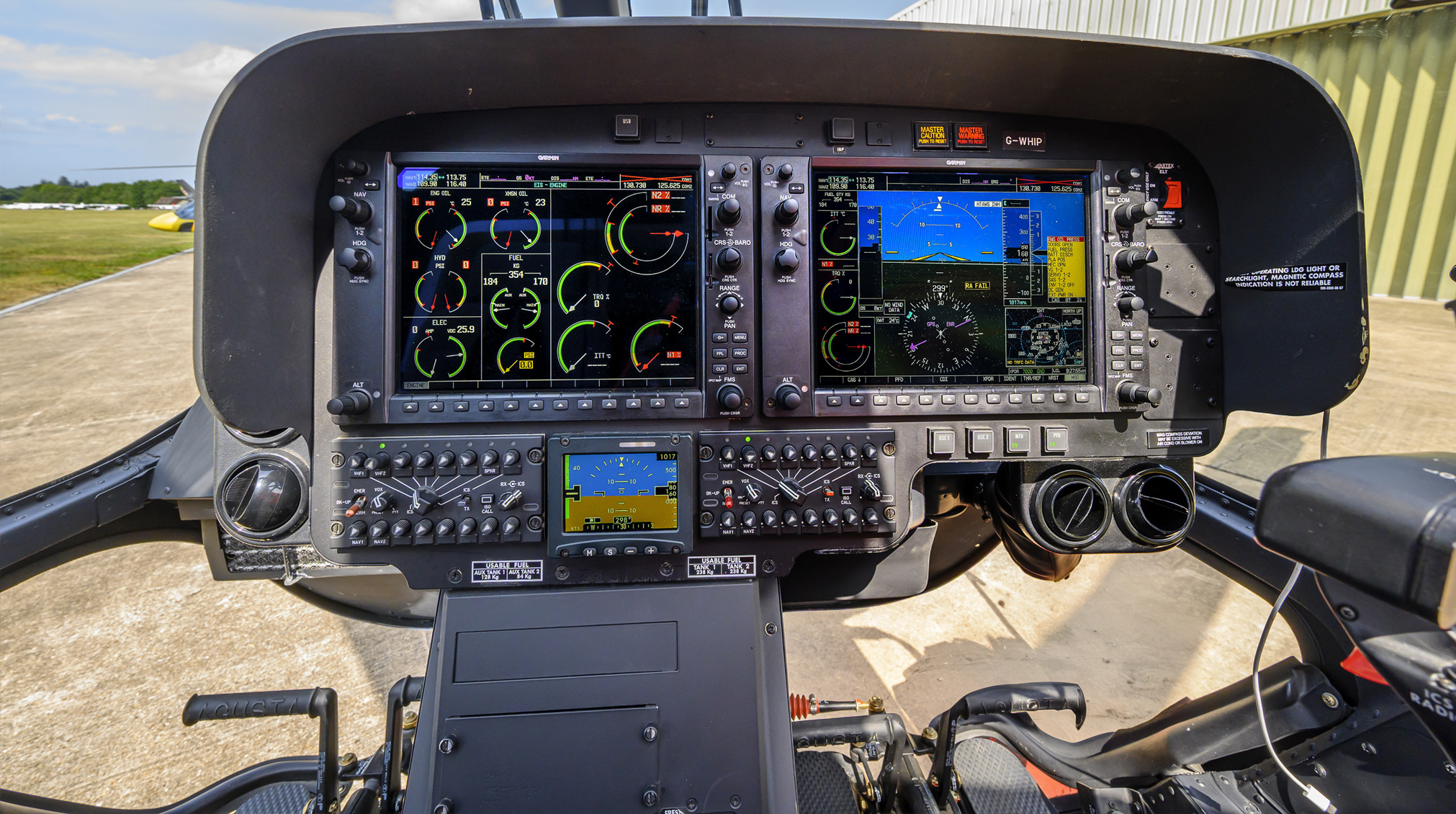

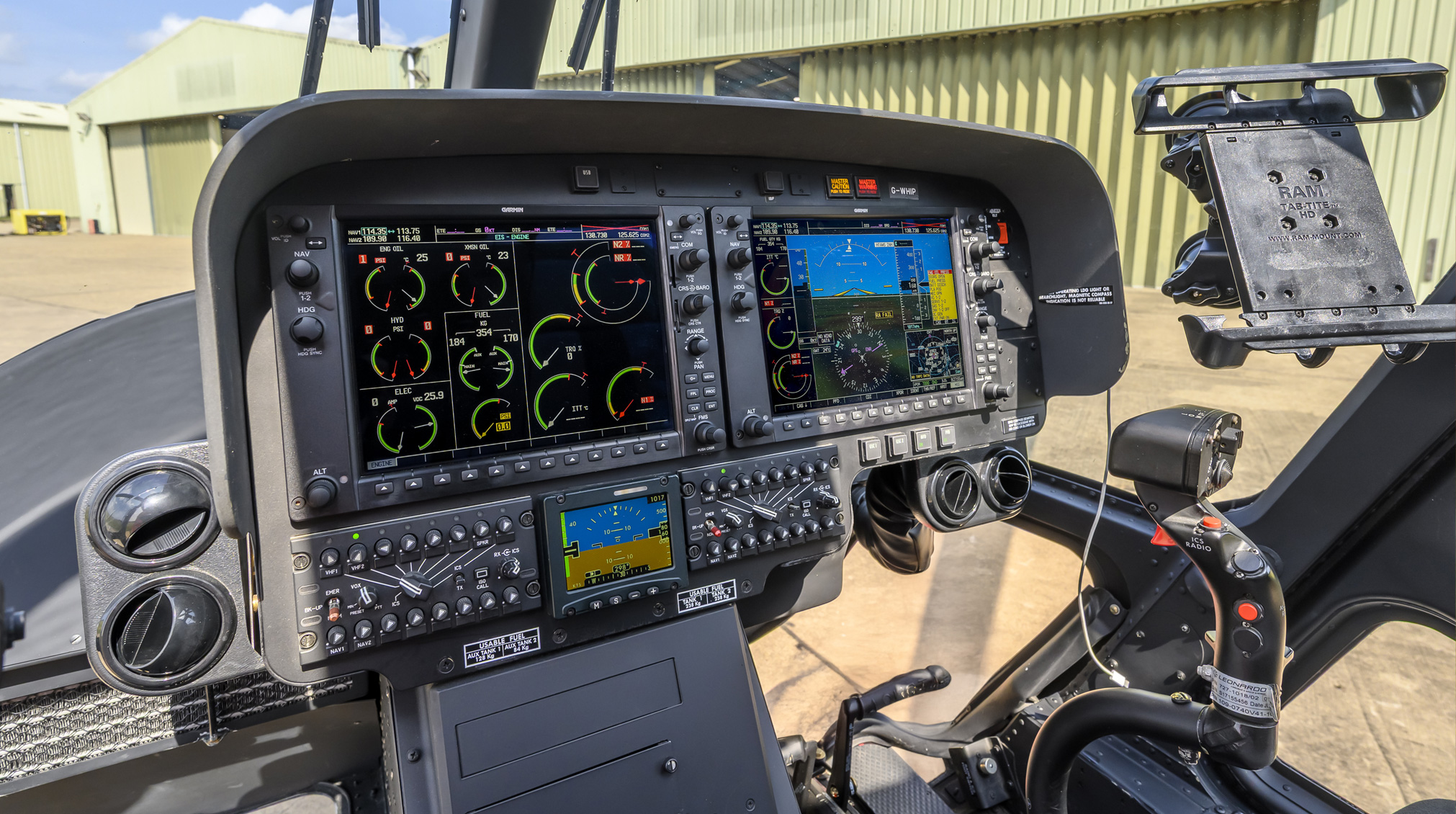

AVIONICS: GARMIN G1000H INTEGRATED FLIGHT DECK SYSTEM COMPRISING:

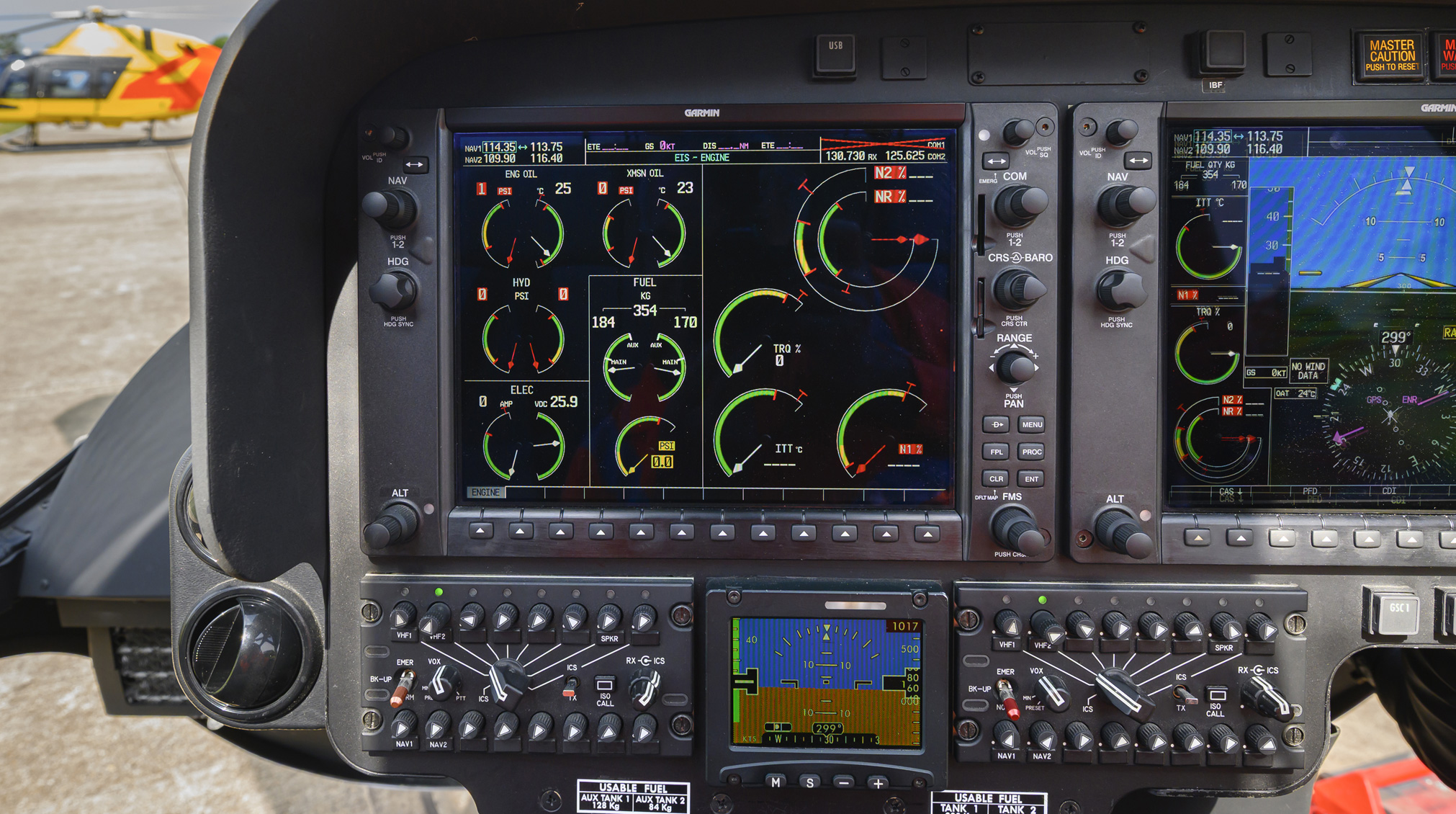

• Two GDU-1040 10.4” display units providing a Primary Flight Display (PFD) and a Multifunction Display (MFD) and integrating:
  • Radio tuning controls
  • Flight Management System (FMS)
  • Synthetic Vision System
  • Helicopter Terrain Awareness and Warning System (HTAWS)
• Two GEA-71H Aircraft Interface Unit with integral Central Maintenance Computer (CMC)
• Two GSC-46 Signal Conditioners GRS-77H AHRS
• GDC-74H Air Data Computer (ADC)
• Two GIA-63H Integrated Avionics Units (IAU) comprising:
  • COM l&2
  • NAV l&2
  • GPS l&2
  • Aural Alert Generator DME tuning interface
• GTX-33H Mode-S Transponder with Extended Squitter (ES) capability
• Digital Audio Control System (DACS) COBHAM with two cockpit panels
• Magnetic Compass indicator
• L3 Avionics System ESI-2000 Electronic Standby Indicator
• Engine Hour meter
• AC power supply system (2 inverters)
• 3-axis duplex SP-71 1 Honeywell
• ELT C406-N HM Artex

STANDARD EQUIPMENT

• 28 Ah battery (in lieu of 22 Ah battery)
• Active Noise Reduction (ANR) BOSE headsets (pilot and co-pilot)
• Baggage compartment lights
• Crew open door actuators
• First aid kit
• Fuel drain electrical valves
• Portable fire extinguisher
• Quick disconnecting chip detectors
• Shoulder harness with inertial reels (pilot and co-pilot)

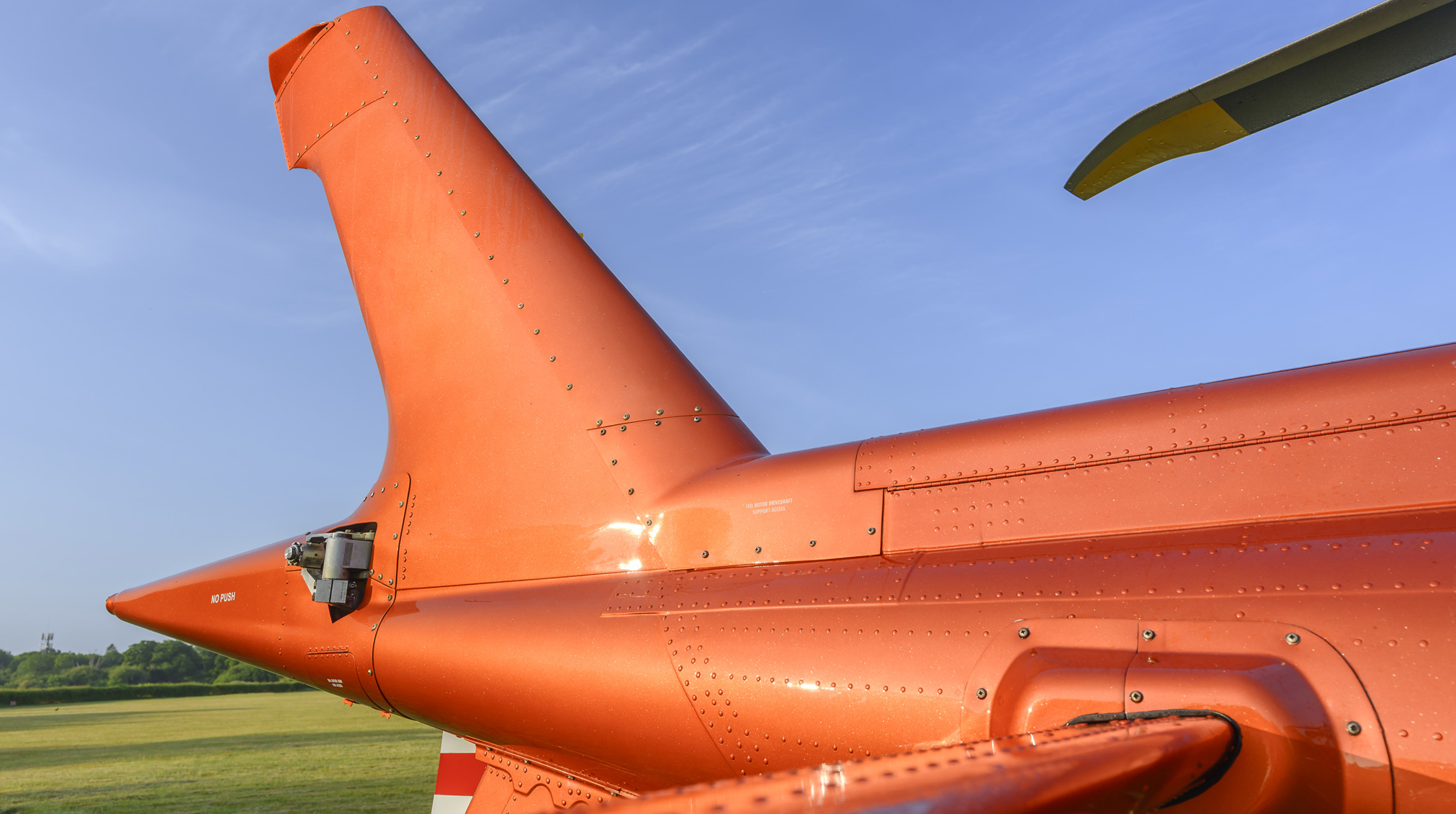

• Tail boom strake

ADDITIONAL EQUIPMENT

• Baggage compartment extension (1.9 m) It may be affected by ai ionic customization
• Dual controls
• Fuel cap with key-lock
• Reinforced windshields (pilot and co-pilot)
• Rotor brake
• Sliding windows on cockpit doors
• Windshield wipers (pilot and co-pilot) with wiper switch on cyclic grips

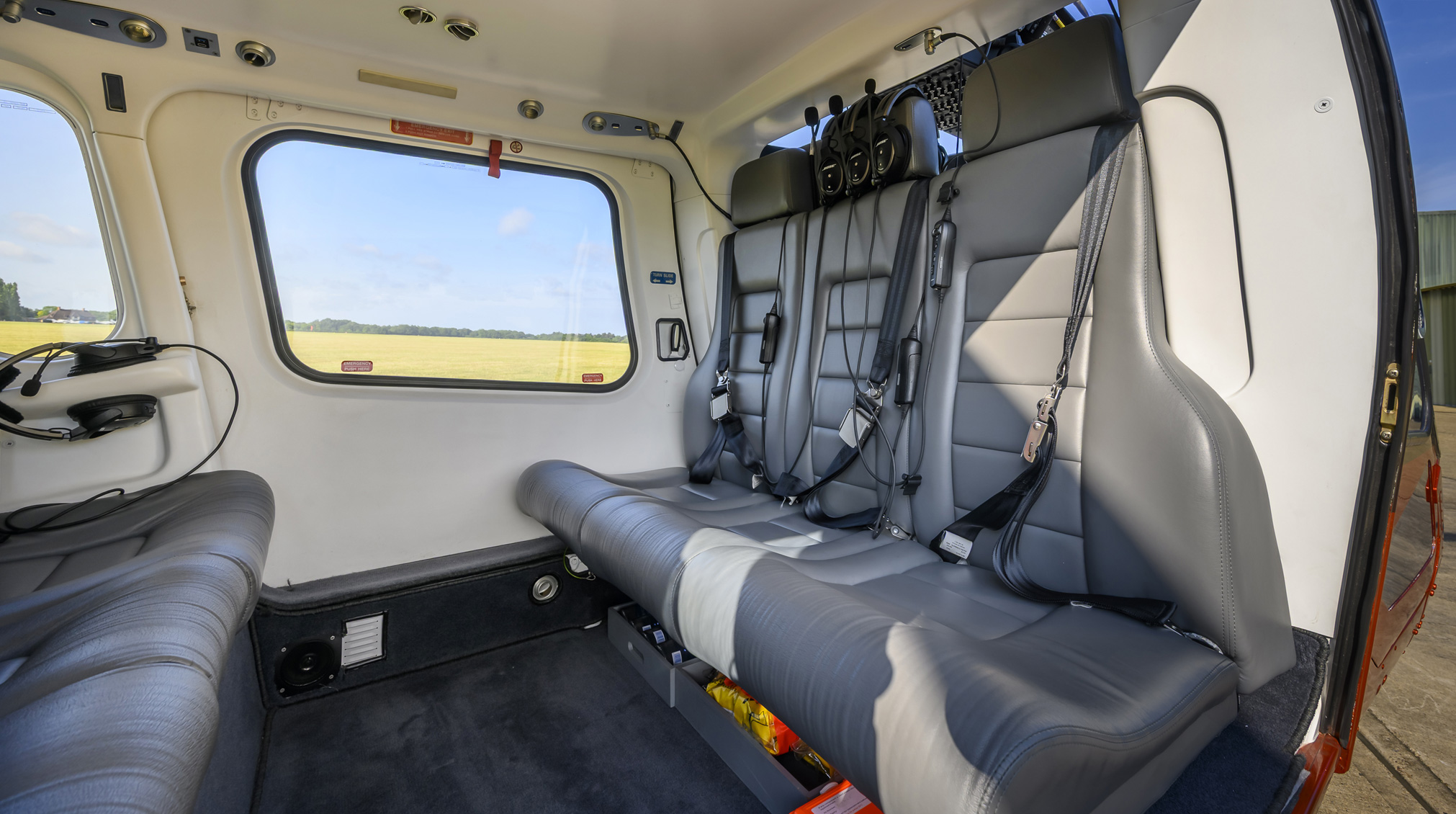

INTERIOR

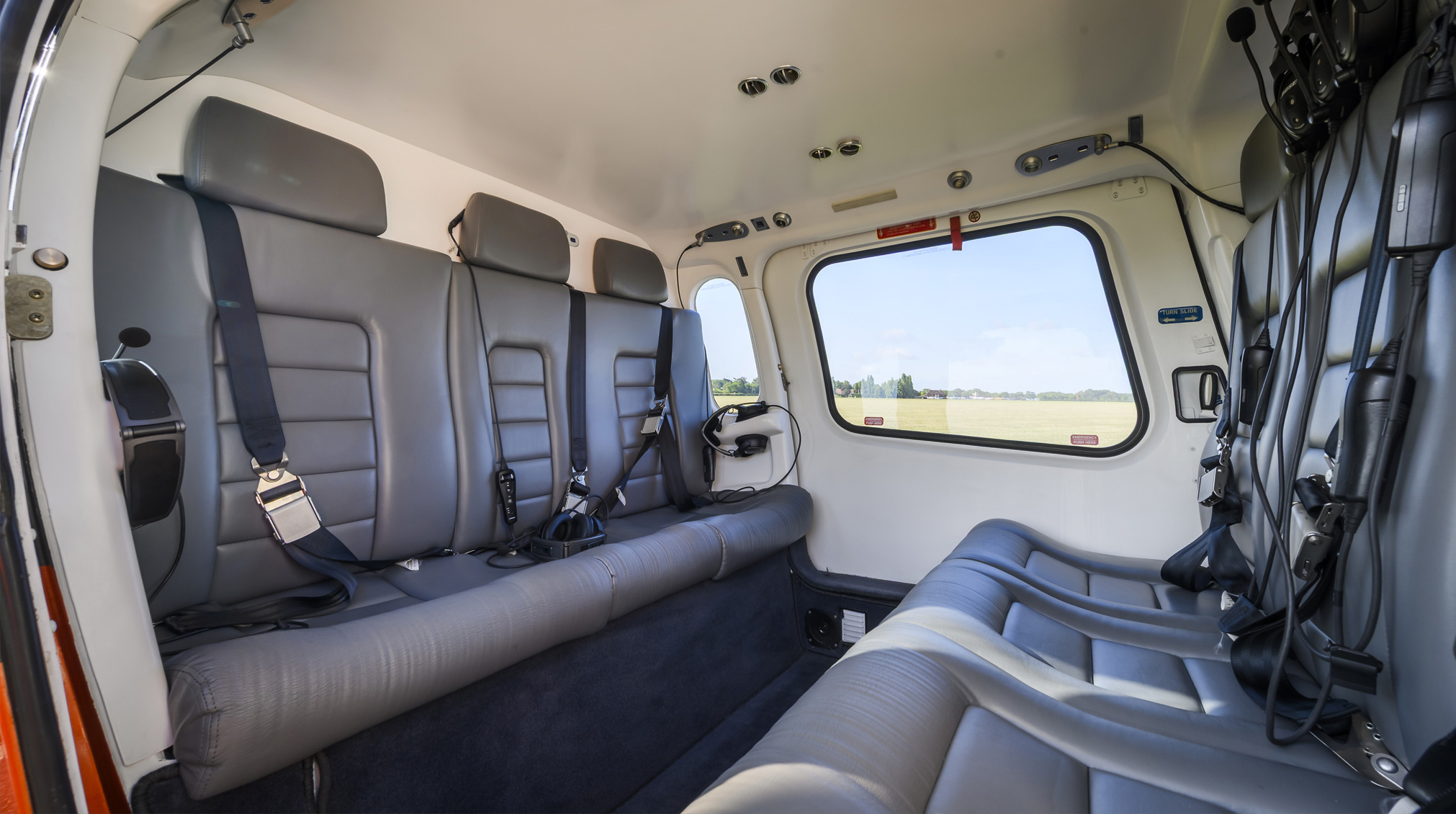

• Utility Convertible Interior:
  • Seats covered with leatherette or fabric
  • Soundproofing
  • Painted liner
  • Three (3) Forward facing seats with 3-point shoulder harness with inertial reels and black colored safety belts for all passenger seats, seat customization as currently installed on the HELICOPTER.
  • Three (3) Aft facing seats with 3-point shoulder harness with inertial reels and black colored safety belts for all passenger seats, seat customization as Forward Facing seats.
  • Reading lights, advisory lights
  • Customized carpet covering in floor area

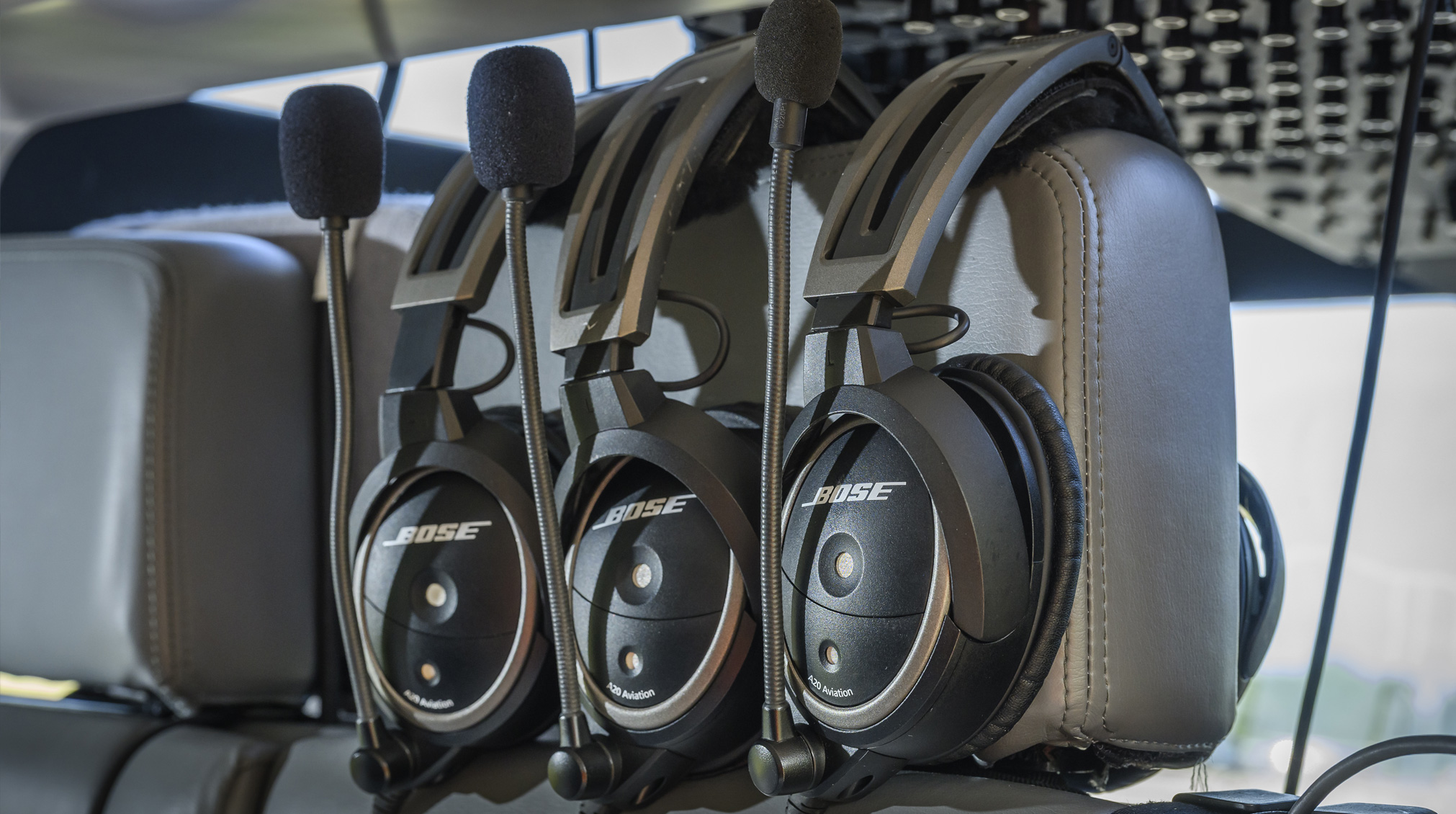

  • Active Noise Reduction (ANR) BOSE headsets (Qty.6)

MISCELLANEOUS / GROUND EQUIPMENT

• Air Intake/Exhaust Covers
• Ground tools kit (incl. tow bar, ground wheels, lifting tool)
• Pitot Tube Cover (x1)
• Rotorcraft Flight Manual (RFM) and Technical Publications
• Tie-Down Fitting Provisions
