2008</span> Leonardo <span>A109E

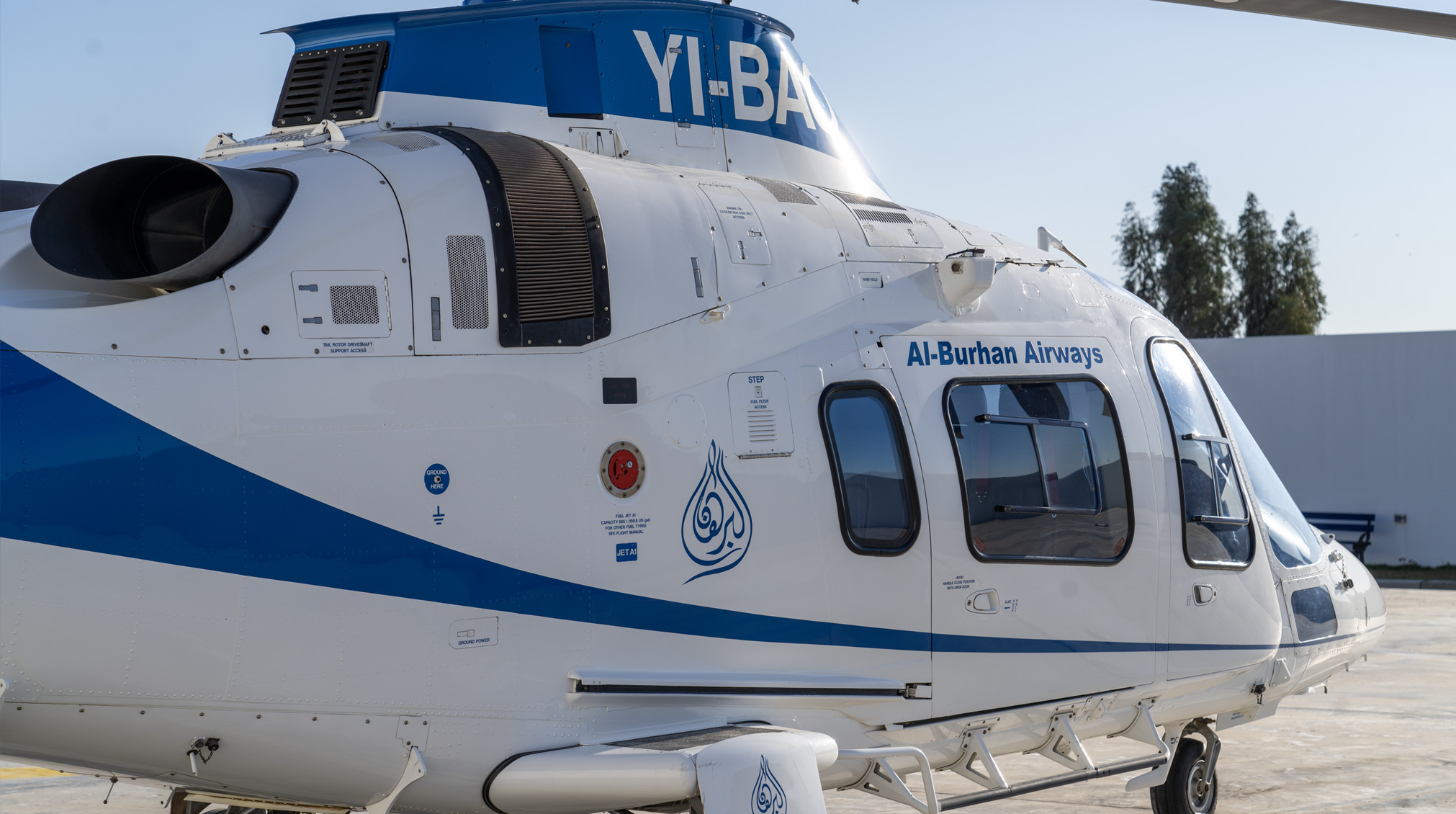

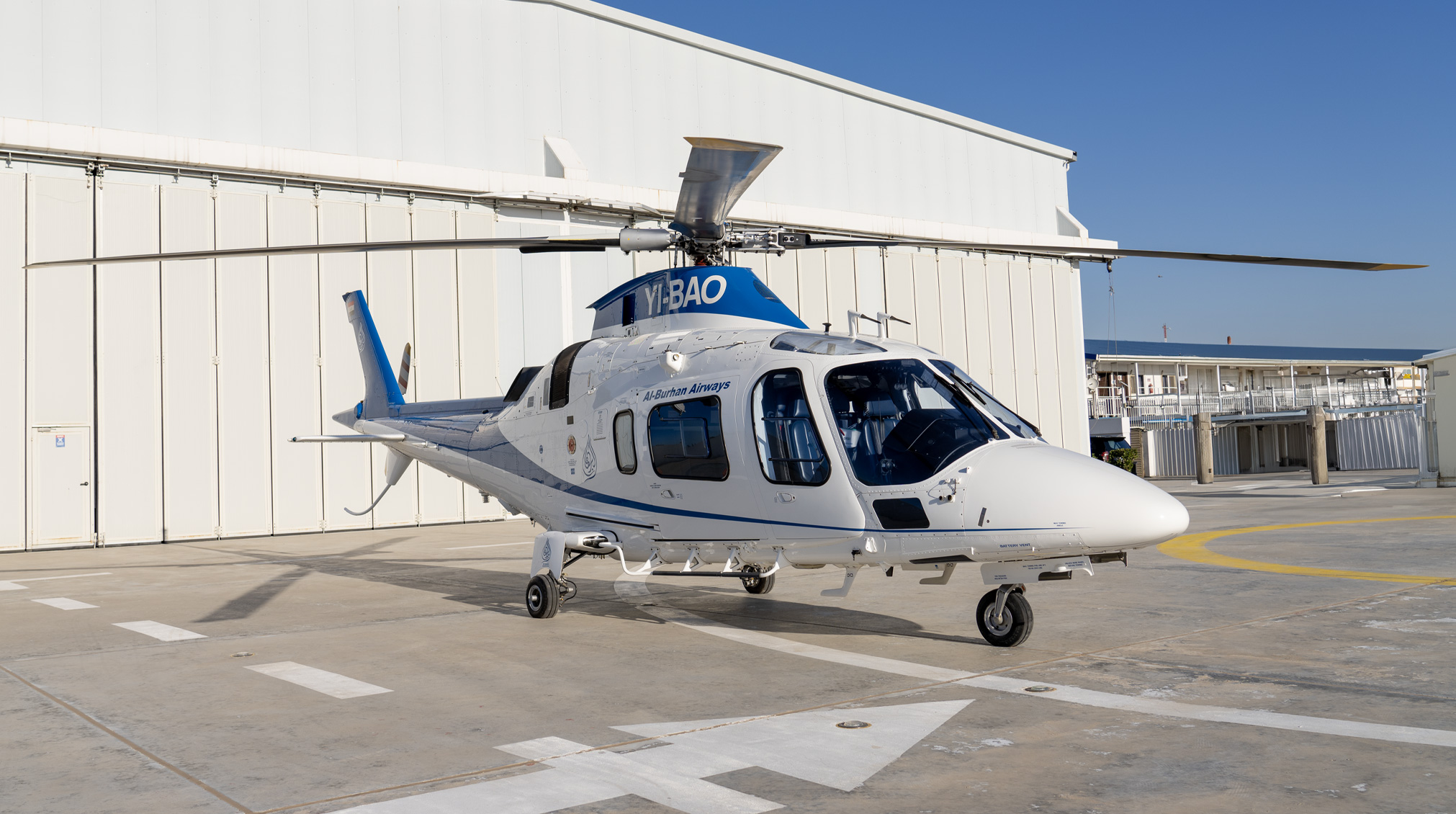

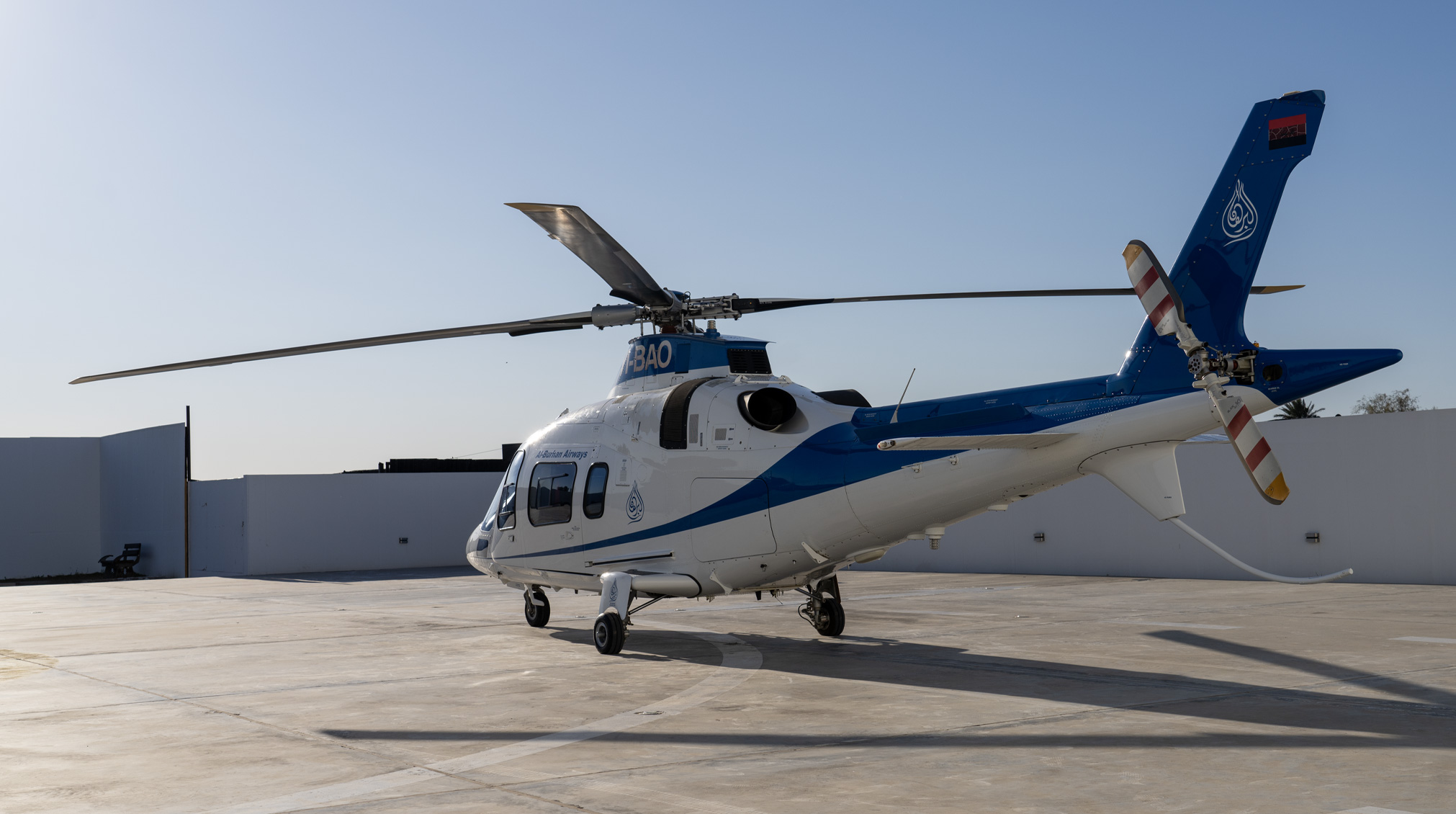

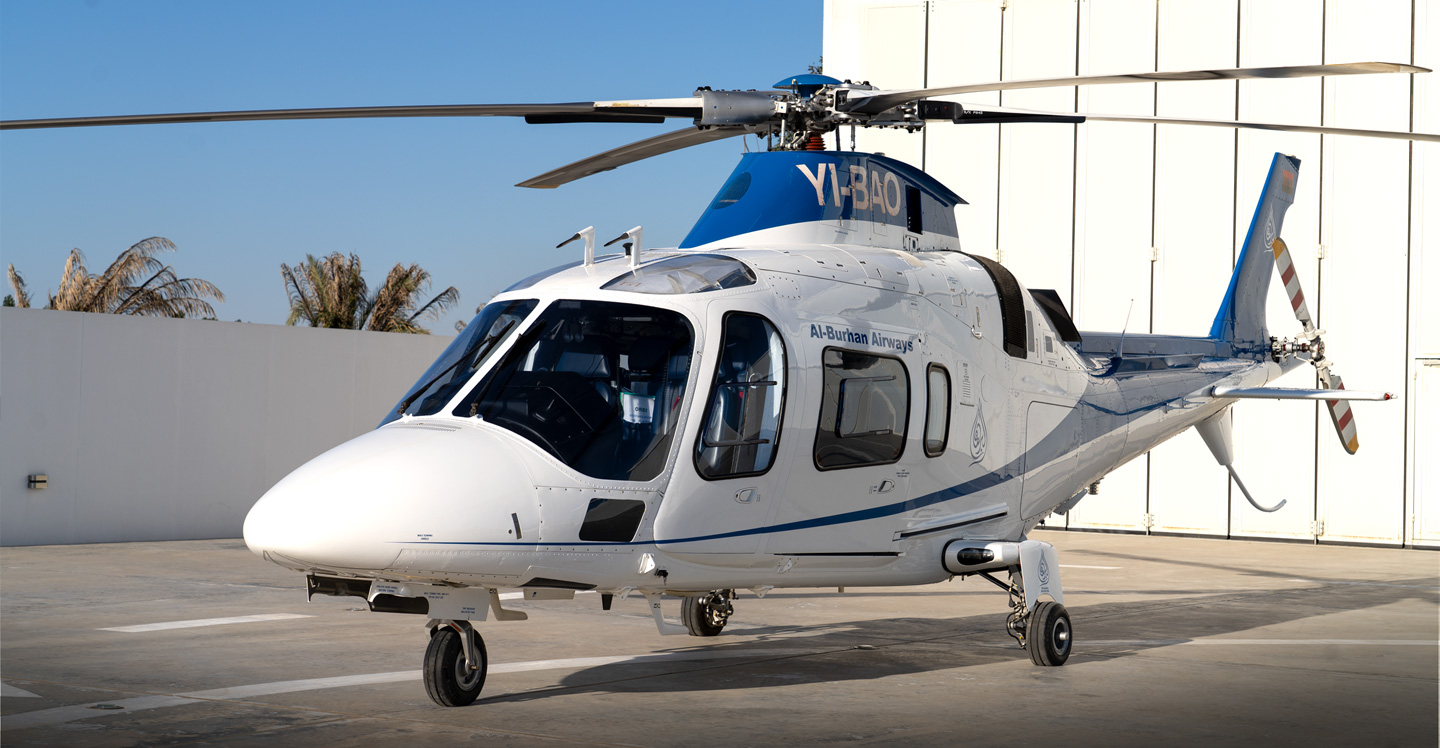

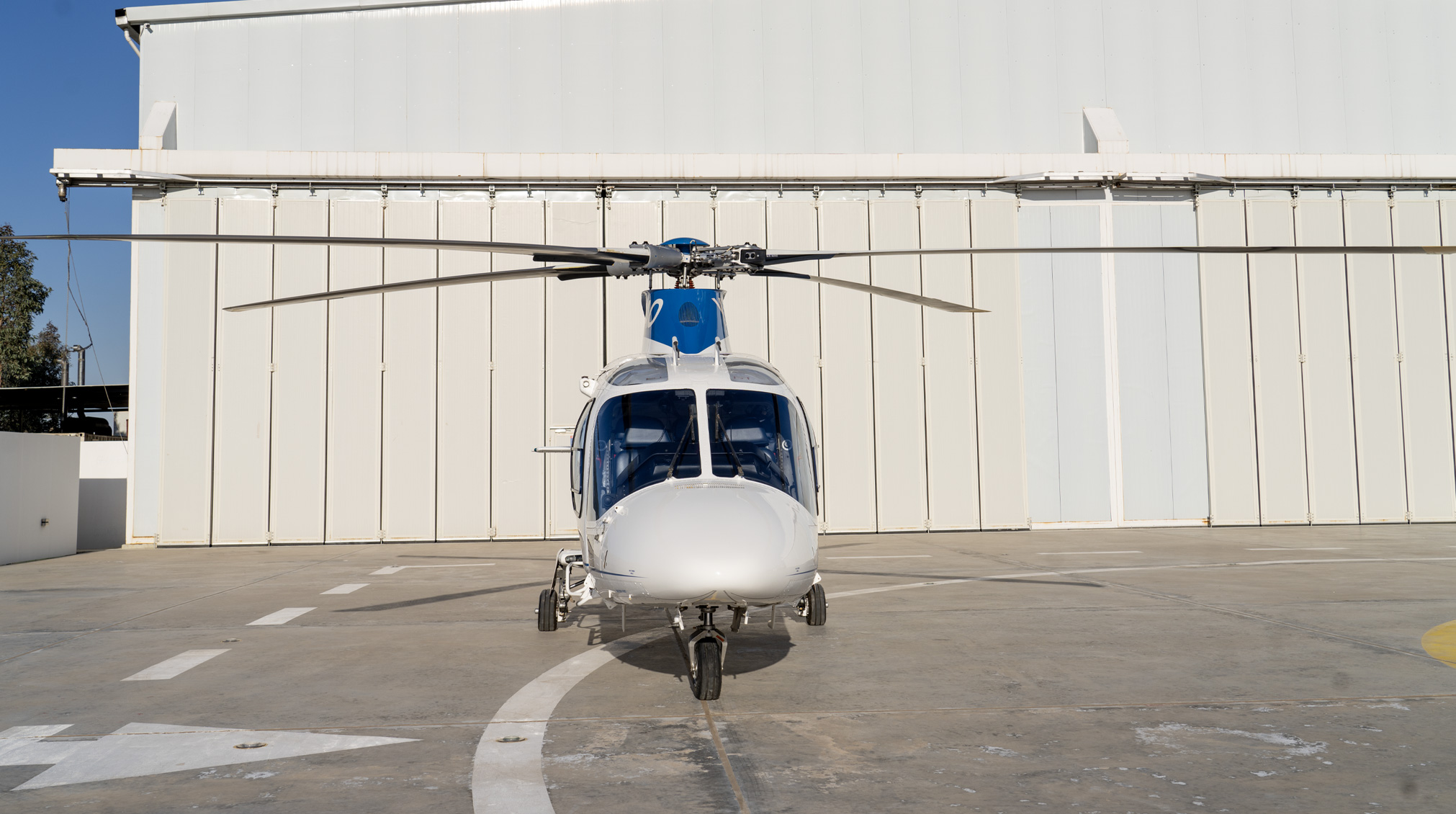

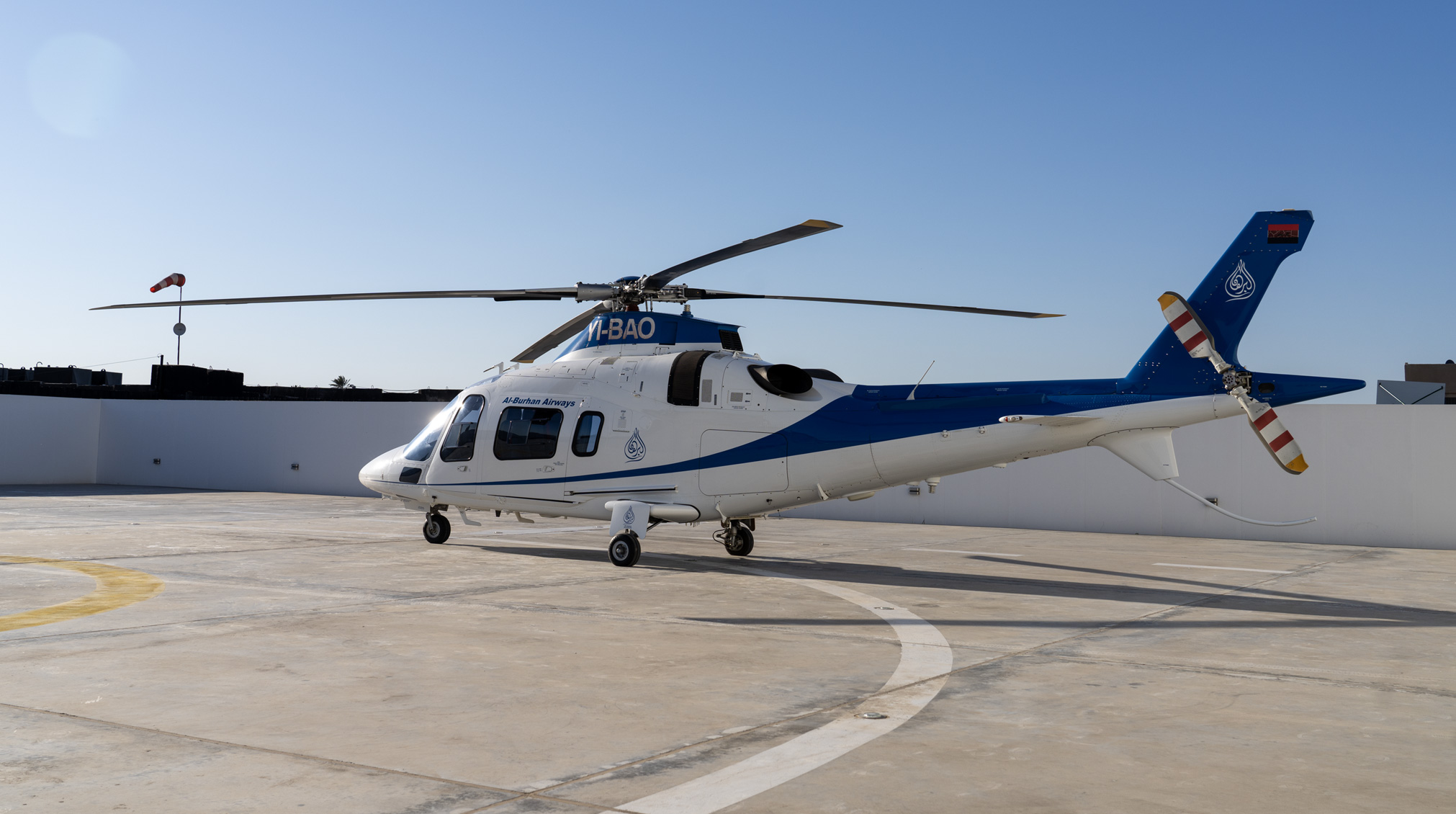

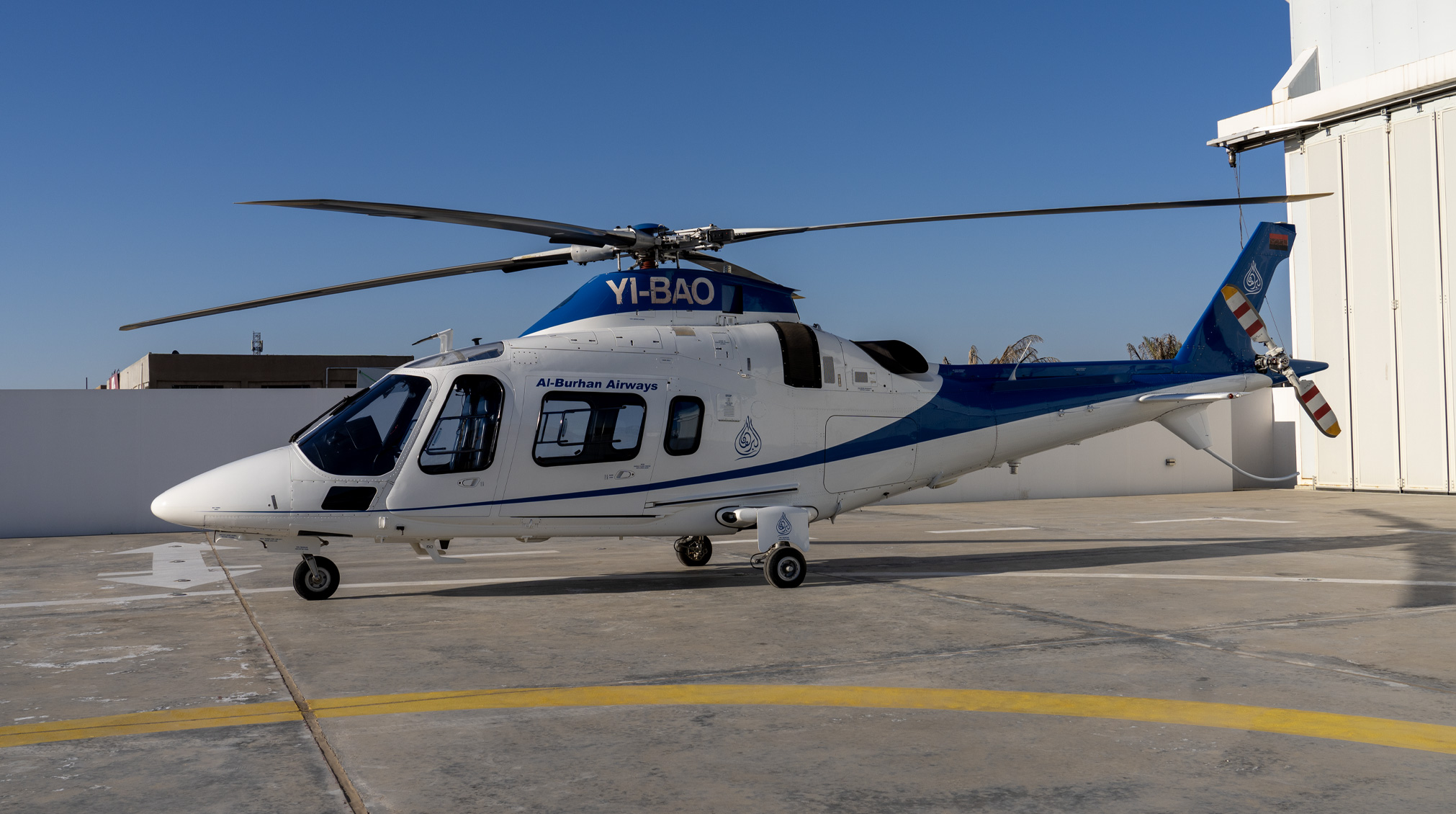

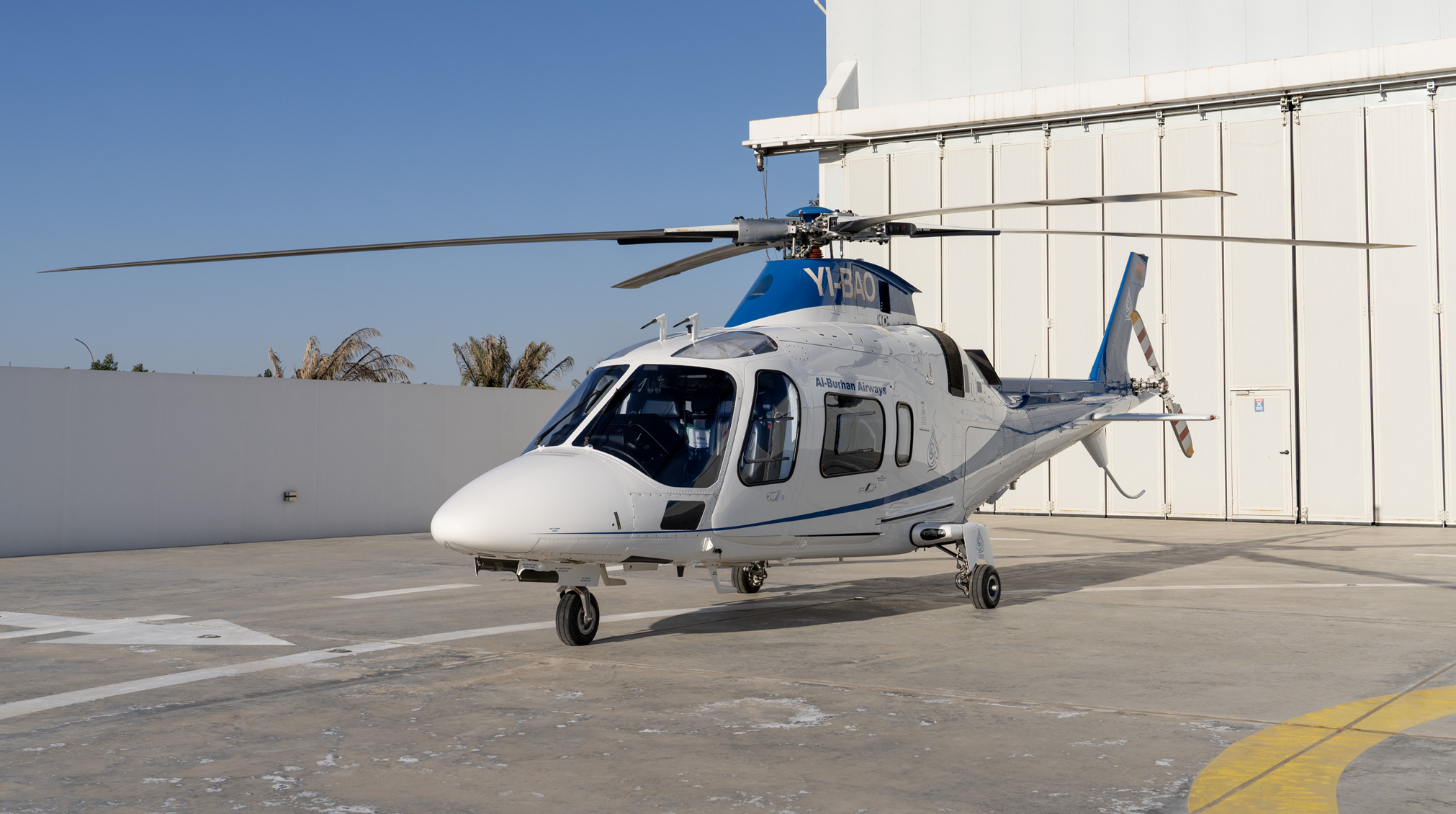

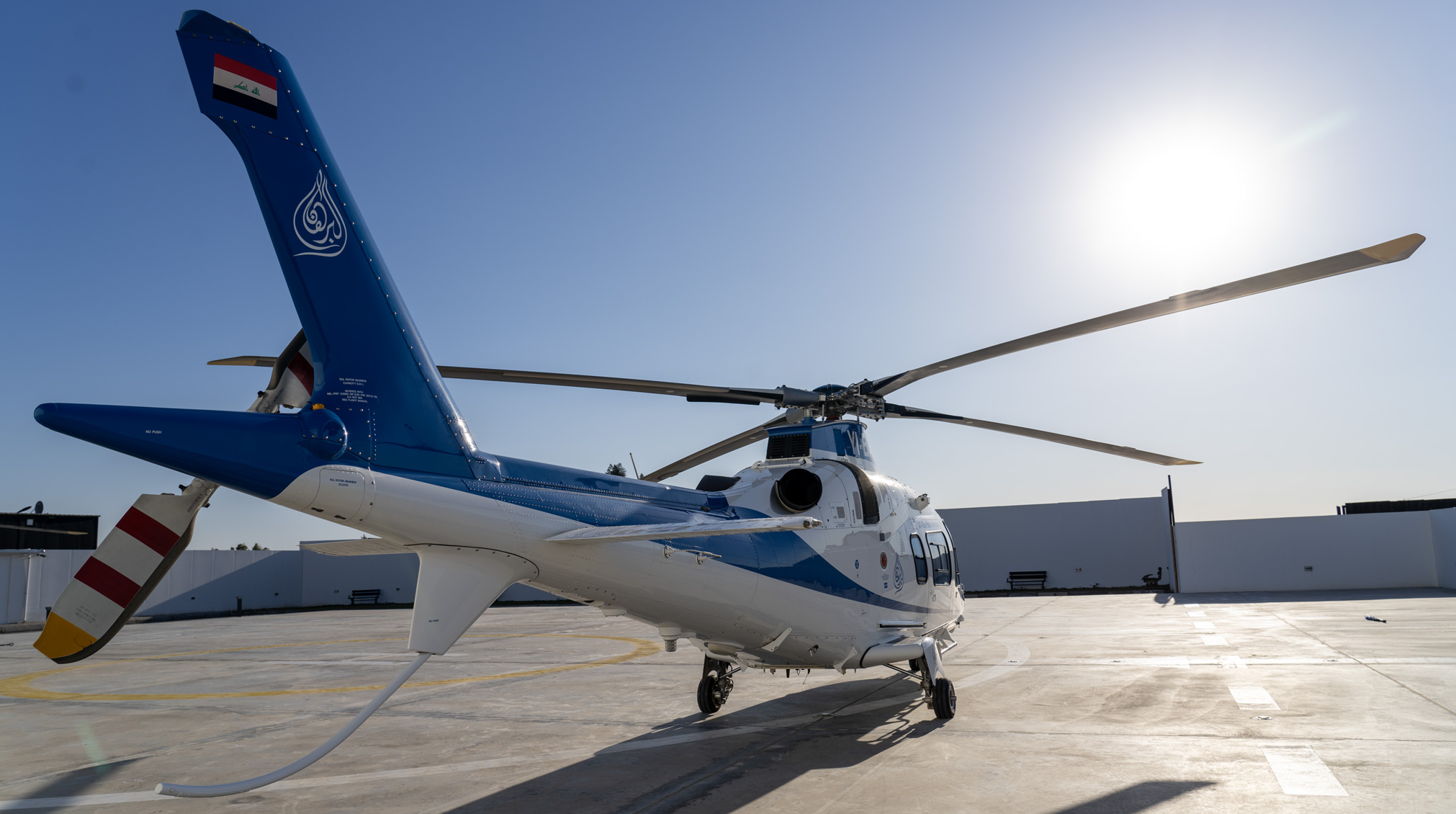

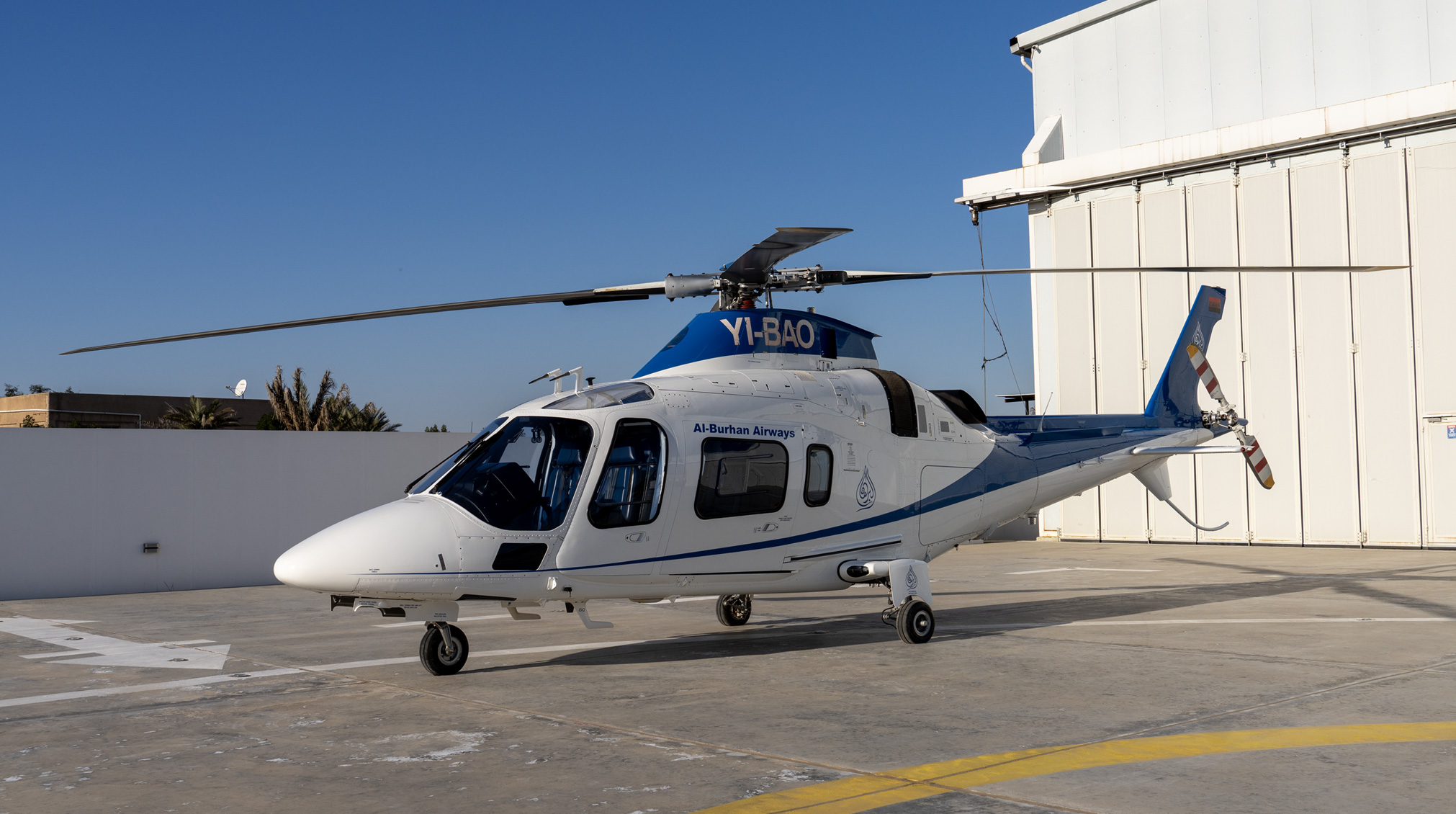

2008 Leonardo A109E

S/N: 11745 | YI-BAO

Make offer
Sale Pending

Total Hours
2531 hours since new

Engines
Pratt & Whitney PW206C


# S/N TSN
1 PCE-BC0315 2,927:30
2 PCE-BC0497 2,862:20

Highlights

  • VIP Config w/ Aircon
  • 600 lb Hoist Provisions
  • Emergency Floats Provisions
  • Light EMS Kits w/ Full EMS provisions

Download Full Specs

Details

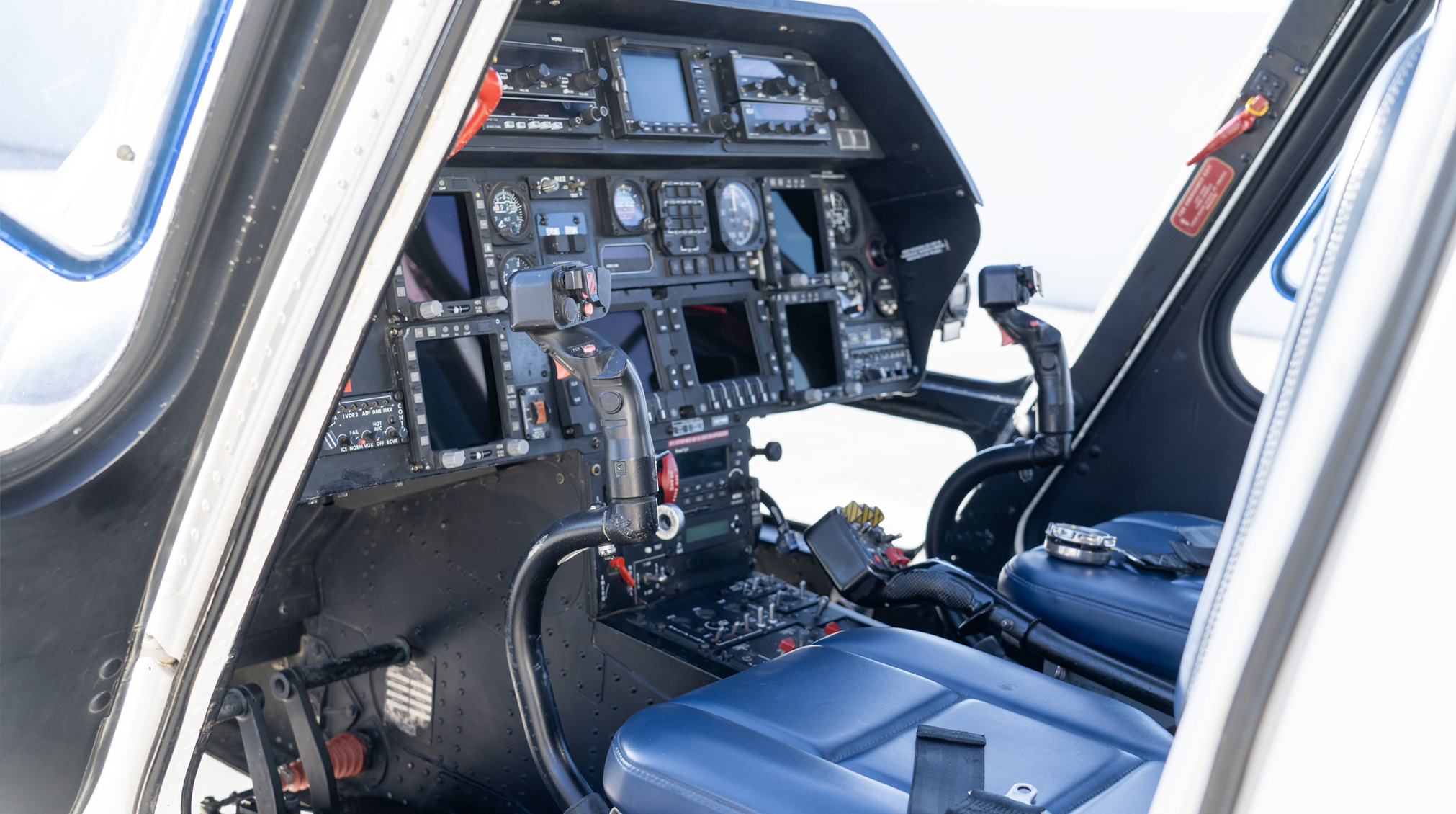

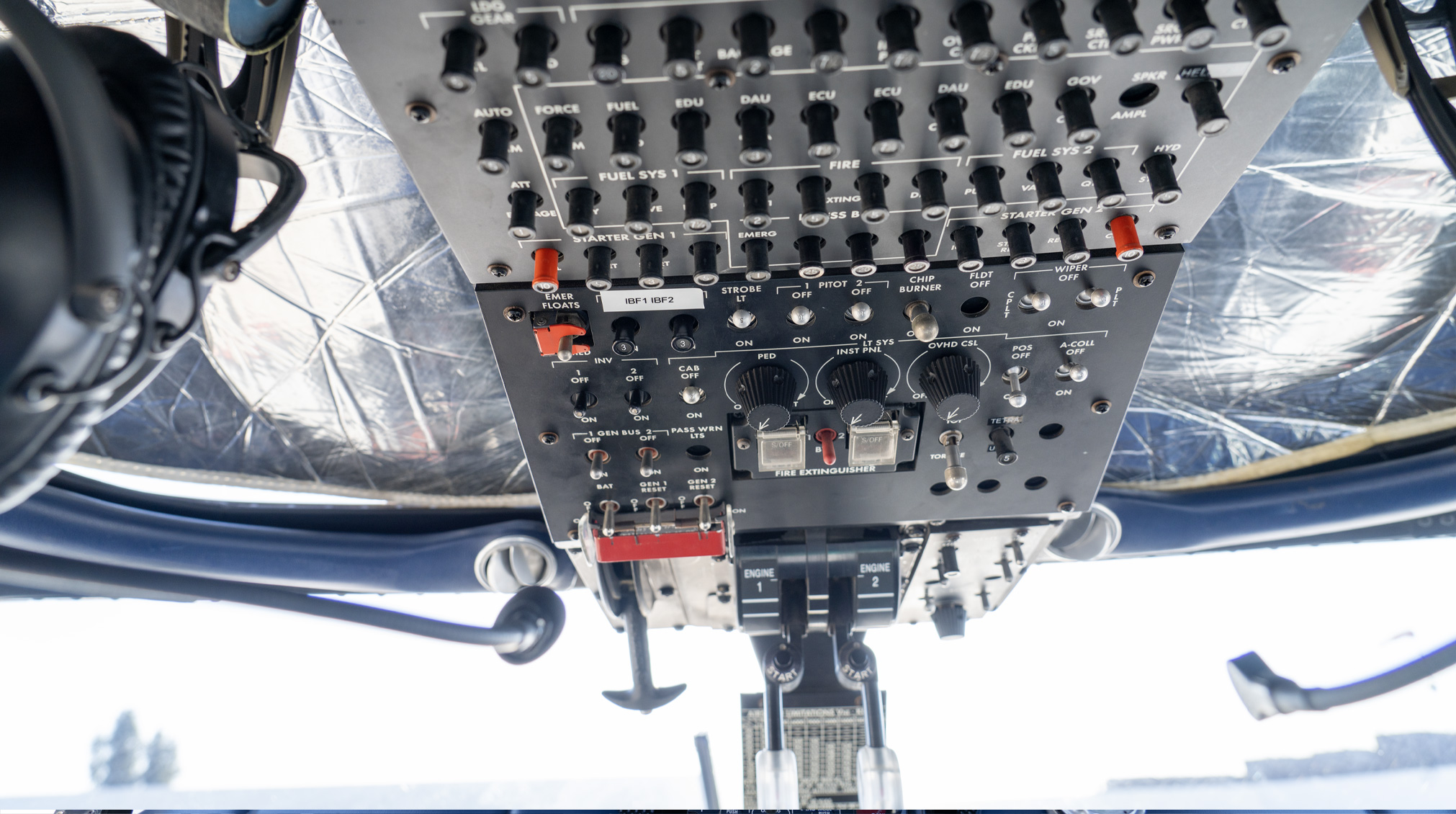

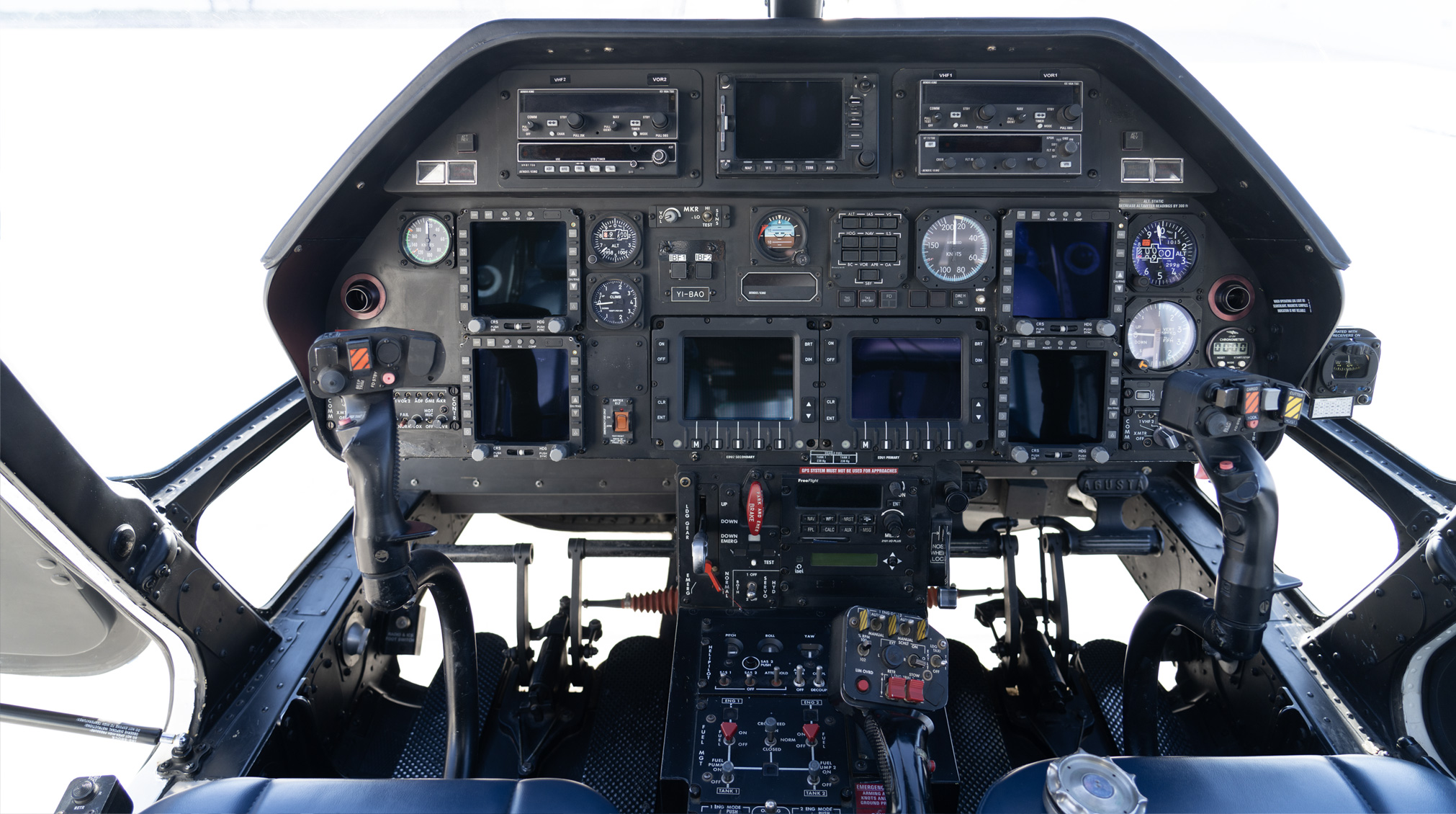

AVIONICS & COCKPIT (HONEYWELL FZ-702/KING PACKAGE)

  • Dual King KX-165
  • Honeywell C-14A Compass
  • Honeywell SP-711 3-axis AFCS
  • Honeywell AA-300 Radio Altimeter Transceiver
  • King KT-73 Mode S ATC Transponder
  • BFGoodrich TAS-497 TCAS Computer
  • King KR-87 ADF Receiver
  • VOR/MKR Receiver
  • King KDM-706A DME Interrogator
  • Trimble 2101 I/O GPS Receiver
  • EDU (2)
  • EFIS(3, Qty-01 under maintenance)
  • Helipilot Computer (2)
  • F/D Computer (Type FZ-702)
  • King KMD-550 moving map
  • ISEI/UMS
  • Cobham CH150 TETRA provisions
  • Standby ADI
  • vertical gyro(2)
  • Agusta/Gemelli intercom
  • King KMR-675 marker bacon
  • Air speed indicator(2)
  • Vertical speed indicator(2)
  • Artex C406-2HM 3-frequency ELT(1)
  • Autotrim
  • Pilot/copilot on command EFIS switch
  • EEC (2)
  • Engine control panel
  • Fuel system control panel
  • Force trim
  • Artificial feel system
  • Radio master switch
  • Dual controls
  • ADS-B Out
  • Anti-reflection instrument panel
  • Adjustable directional pedals
  • Cyclic & collective controls w/adjustable friction devices
  • Instrument lights w/dimming switch Flight manual
  • Dual headsets

EQUIPMENT

  • Pop-out float provisions
  • Hoist provisions w/step bar
  • 1.9-meter baggage compartment extension
  • Cargo net provisions
  • Window sliders
  • Fuel cap w/key lock
  • Aluminum alloy tail boom
  • LH & RH hinged-Jettisonable crew doors
  • LH & RH passenger sliding doors w/Jettisonable windows
  • Acrylic windshield & side windows
  • Acrylic overhead windows
  • Removable-fiberglass tail rotor gearbox fairing
  • Quick-removable tail rotor drive shaft cover
  • 3-wheel retractable landing gear
  • Interchangeable landing gear tires
  • Baggage compartment w/hinged door & lights
  • Three jacking points
  • Ground points
  • Quick-opening hinged inspection doors
  • Removable fairing & cowlings
  • Rotor brake
  • Engine fire detection system
  • Pulsed chip detectors
  • Lubrication & cooling system
  • Dual engine oil chip detectors
  • Three fuel cells
  • Dual submerged fuel boost pump
  • Engine-mounted fuel control & governor
  • Fuel pump & oil pumps w/assemblies
  • Ground fuel drains
  • RH refueling point
  • Easy access fuel filter
  • Two stage transmission
  • Single-stage bevel gear tail rotor 90-degree gearbox
  • Transmission cooling & lubrication system
  • Two freewheeling units
  • Two hydraulic pumps (transmission-mounted)
  • Titanium metal main rotor hub
  • Steel metal tail rotor hub
  • Hydraulic anti-torque system
  • 24-volt DC nicad battery
  • Two 160-amp self-cooled starter generators
  • Battery relay
  • Dual voltage regulators
  • Dual interconnecting bus relays
  • Aural warning generator system
  • Pilot/copilot windshield wipers w/cyclic grip control
  • Engine compartment fire extinguishers
  • Tail boom strake
  • First aid kit
  • Fuel drain electrical valves
  • Pitot tube covers
  • Air intake/exhaust covers
  • Tie-down fittings
  • Wheel chocks
  • Ground tools w/tow bar & lifting tool
  • External power relay
  • External power receptacle
  • Distribution buses
  • Inlet barrier filter (Donaldson)

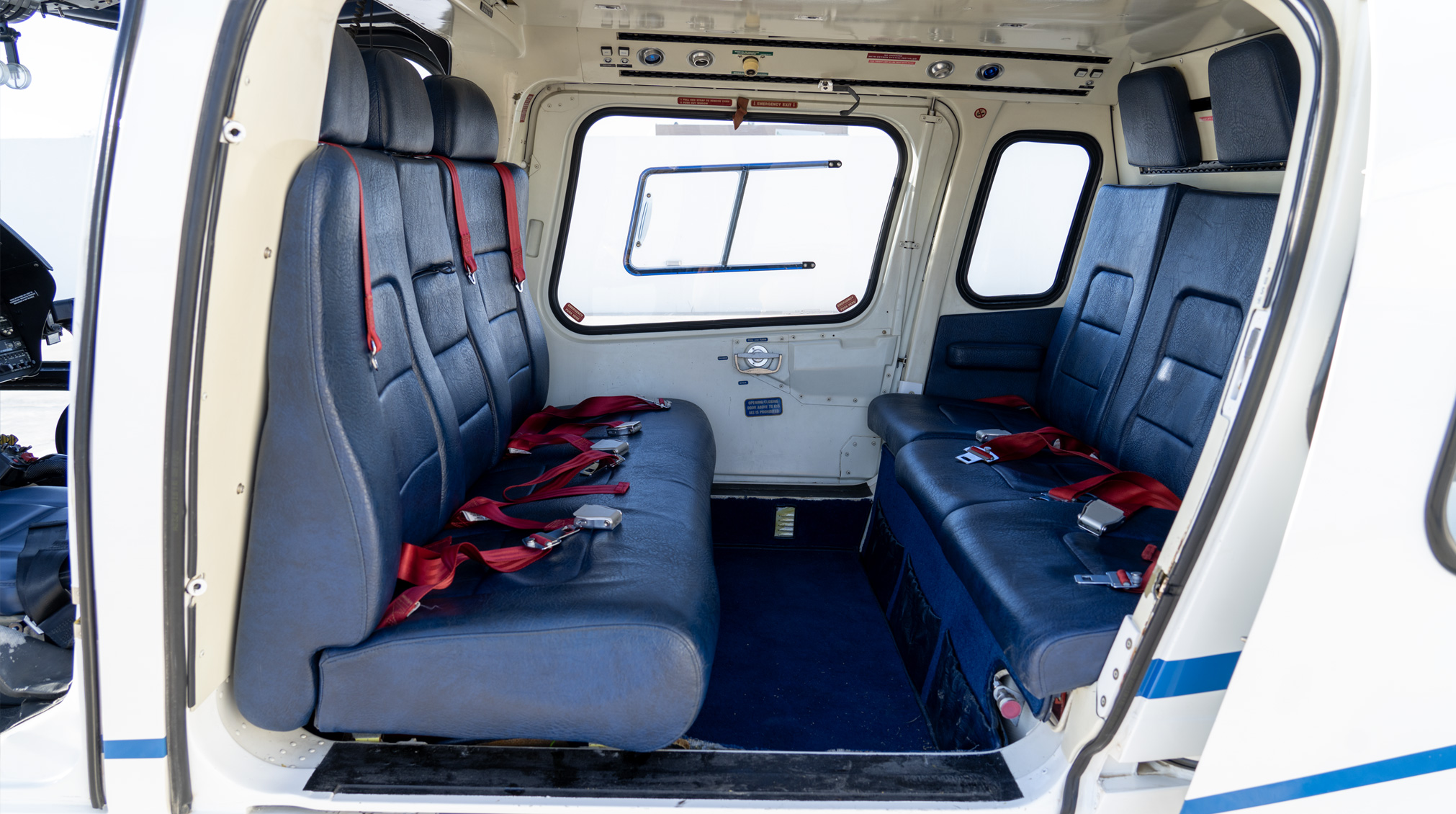

INTERIOR

  • Air conditioning
  • Dual inverters

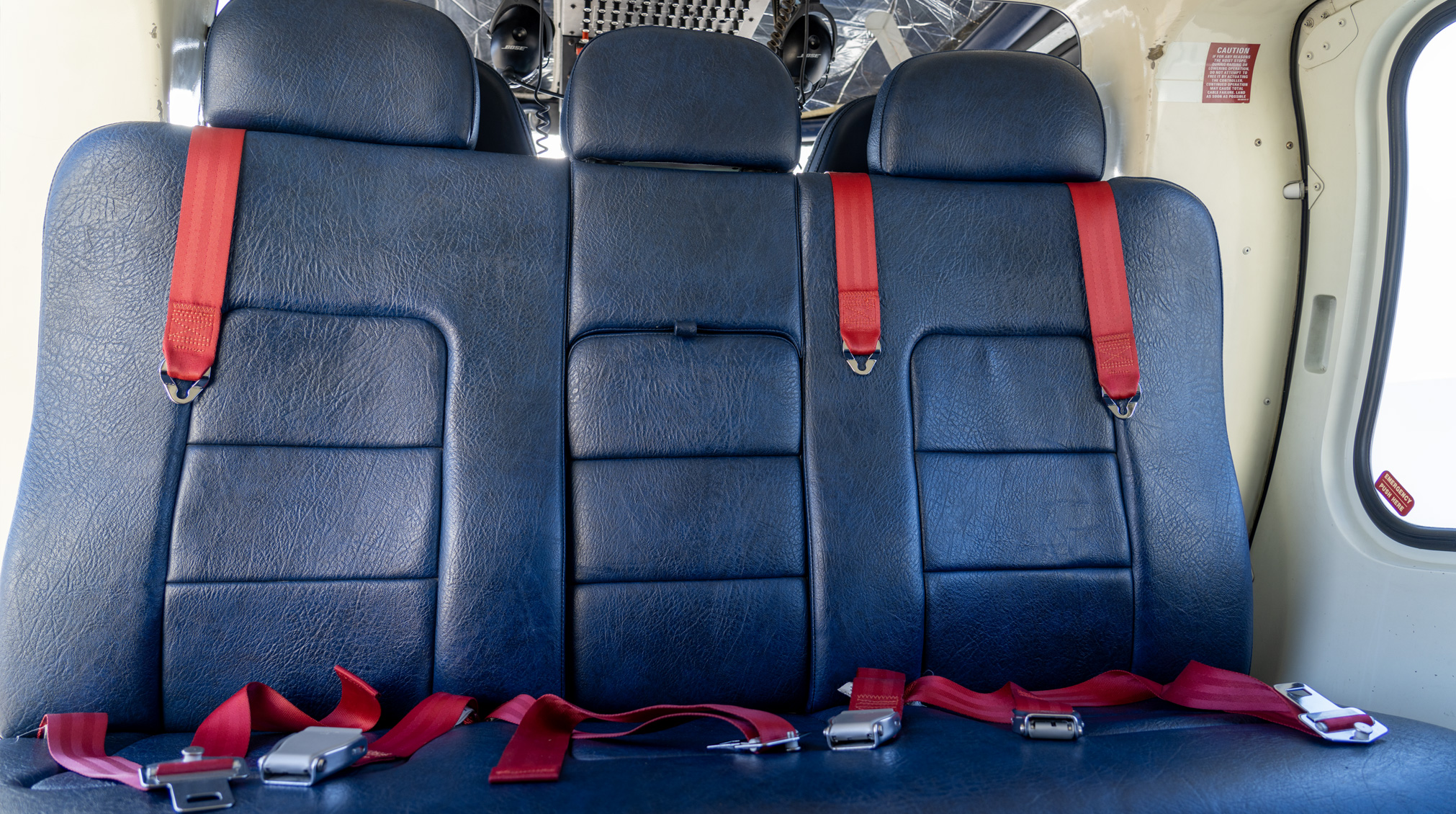

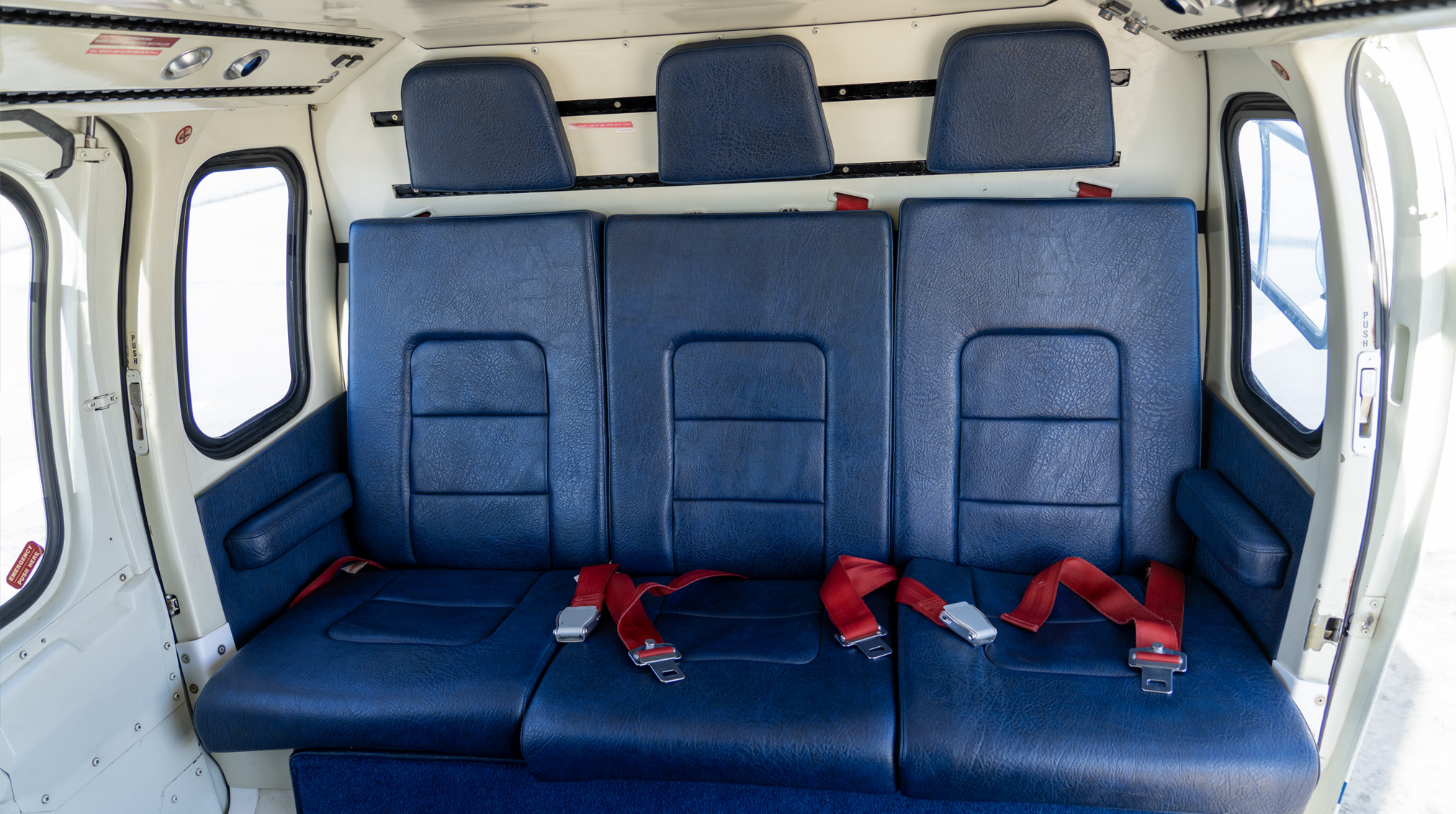

  • Leather seating, dual foldable forward-facing seats w/headsets & reversible pilot/copilot seat w/headsets
  • Headliner w/soundproofing & EMS provisions
  • Rubber flooring w/rails & drains, aluminum alloy honeycomb reinforced floor w/anti-skid finish
  • Medical cabinet w/oxygen system provisions, reclined aft bulkhead
  • Aft EMS liner w/rails, side liners w/EMS provisions
  • Bench panels w/aft EMS provisions & stretcher lock
  • Three active noise reduction headsets
  • Ram air ventilation inlets
  • 3-point shoulder harnesses w/inertia reels, crew lap belts
  • Fire extinguisher

EXTERIOR

  • White w/blue trim
