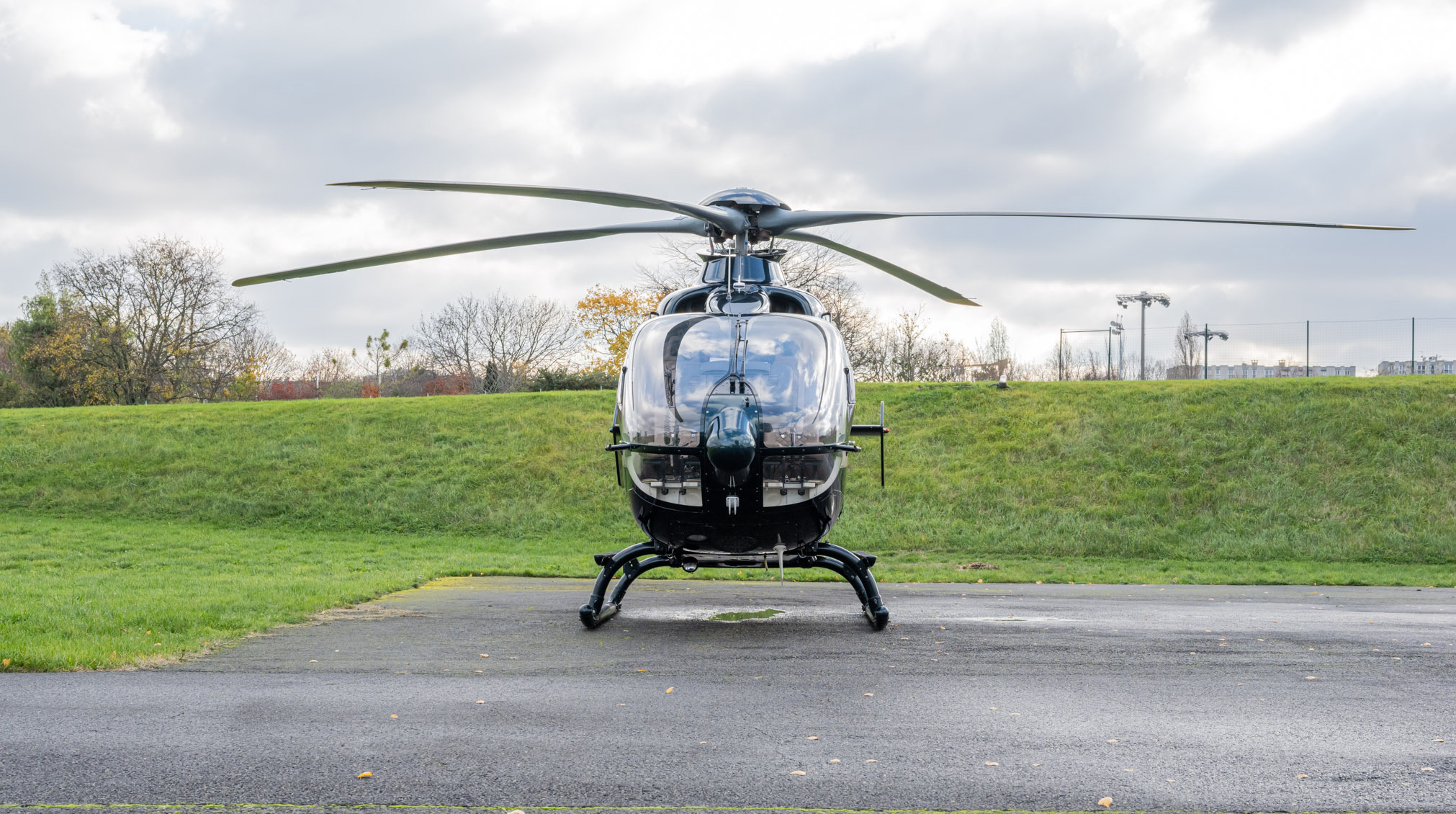

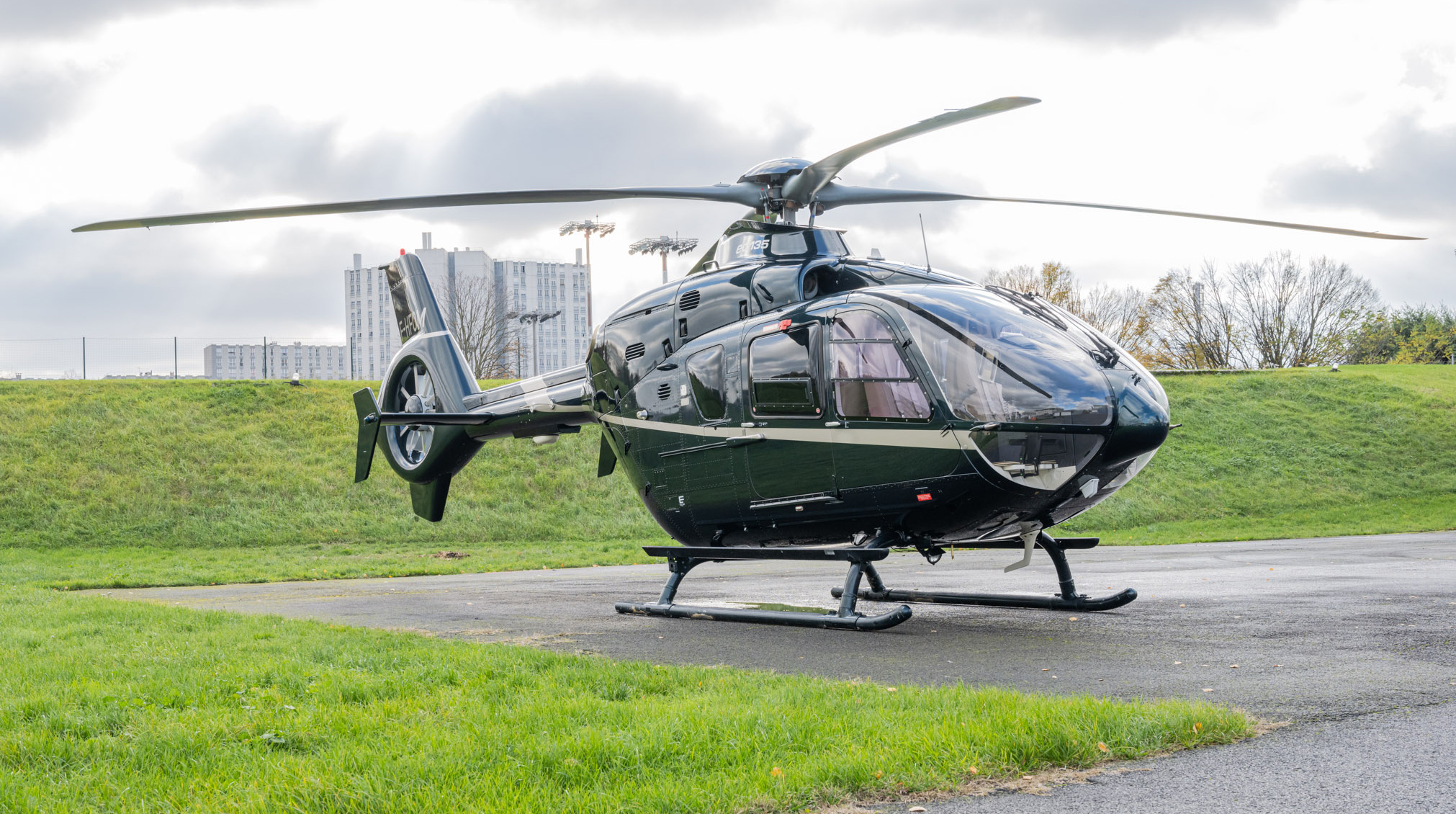

2007</span> Airbus <span>EC135T2+ (T2e)

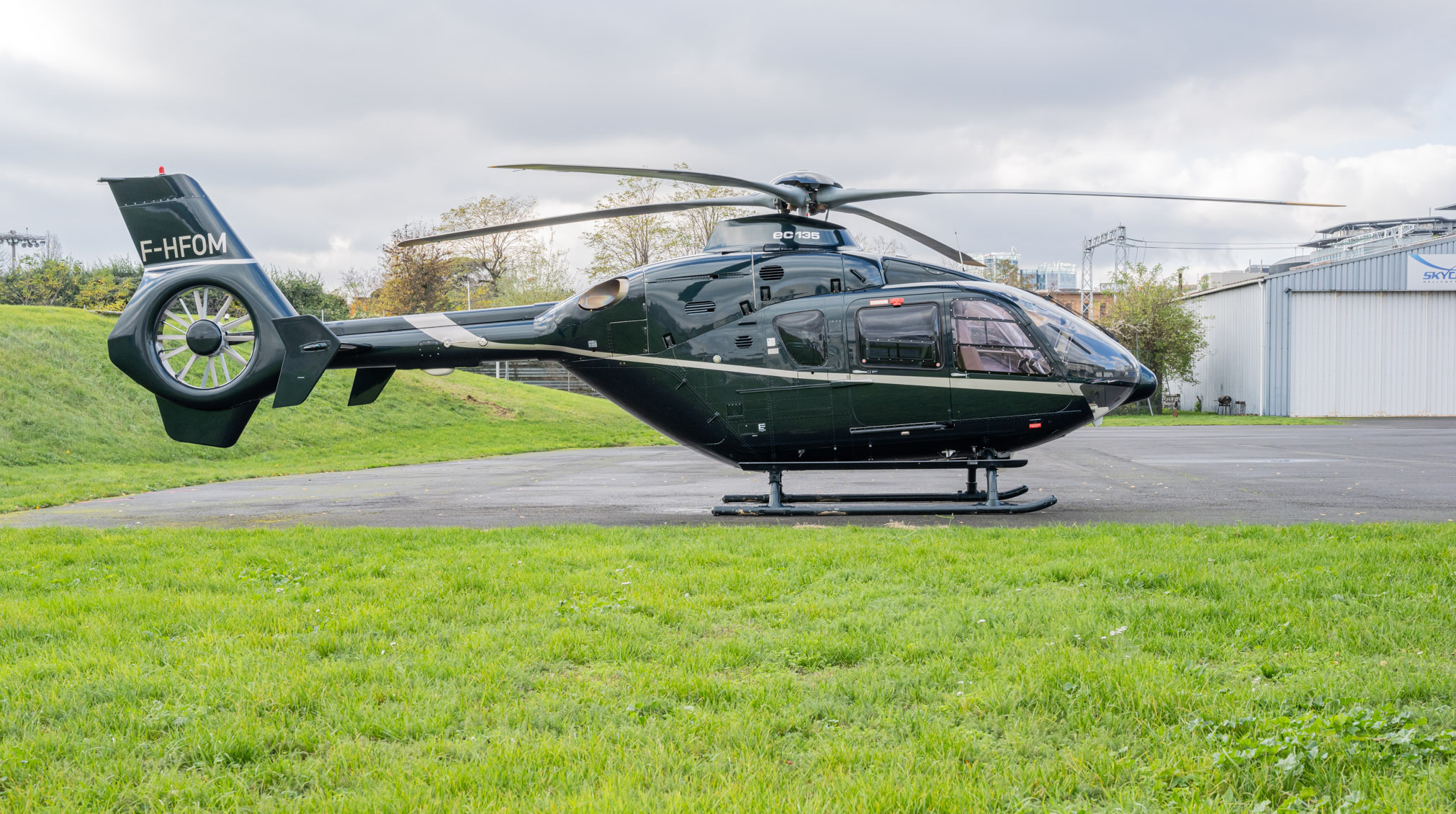

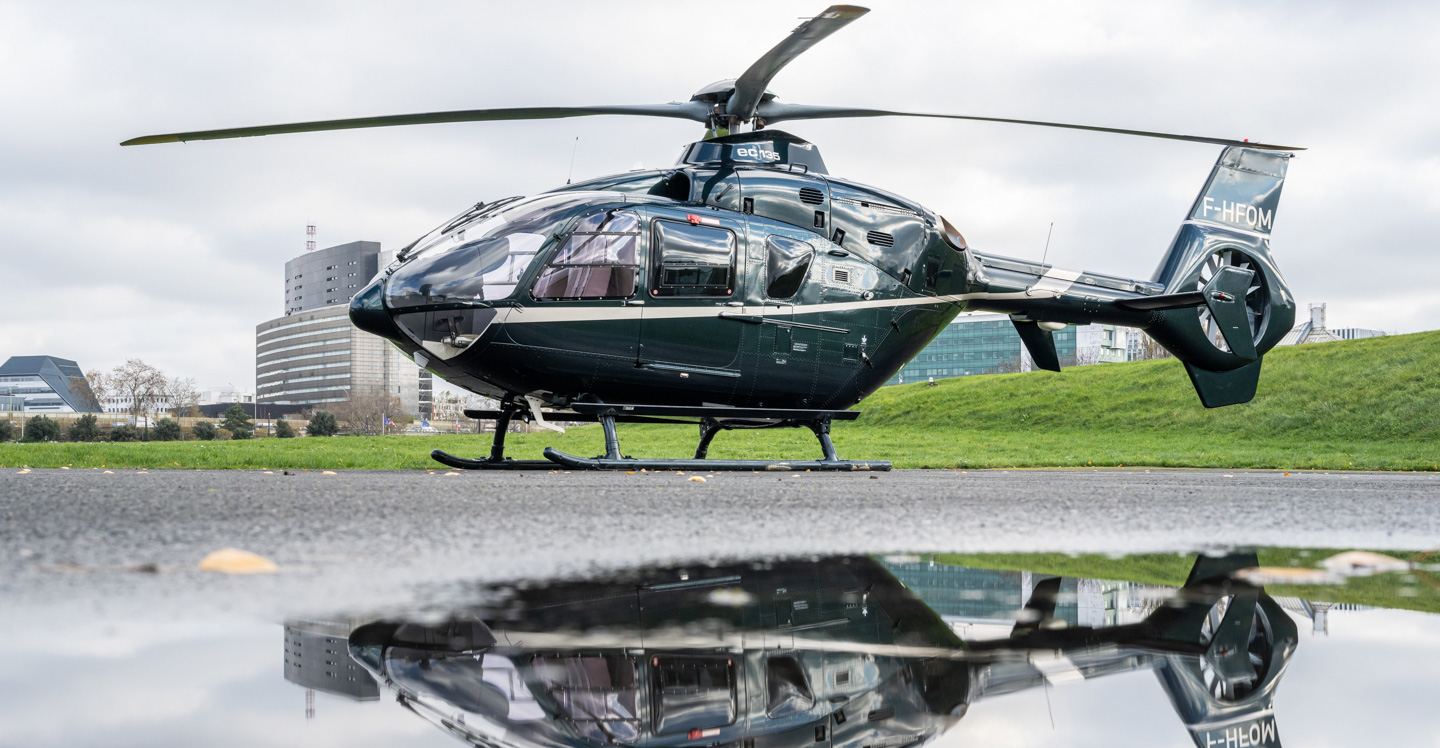

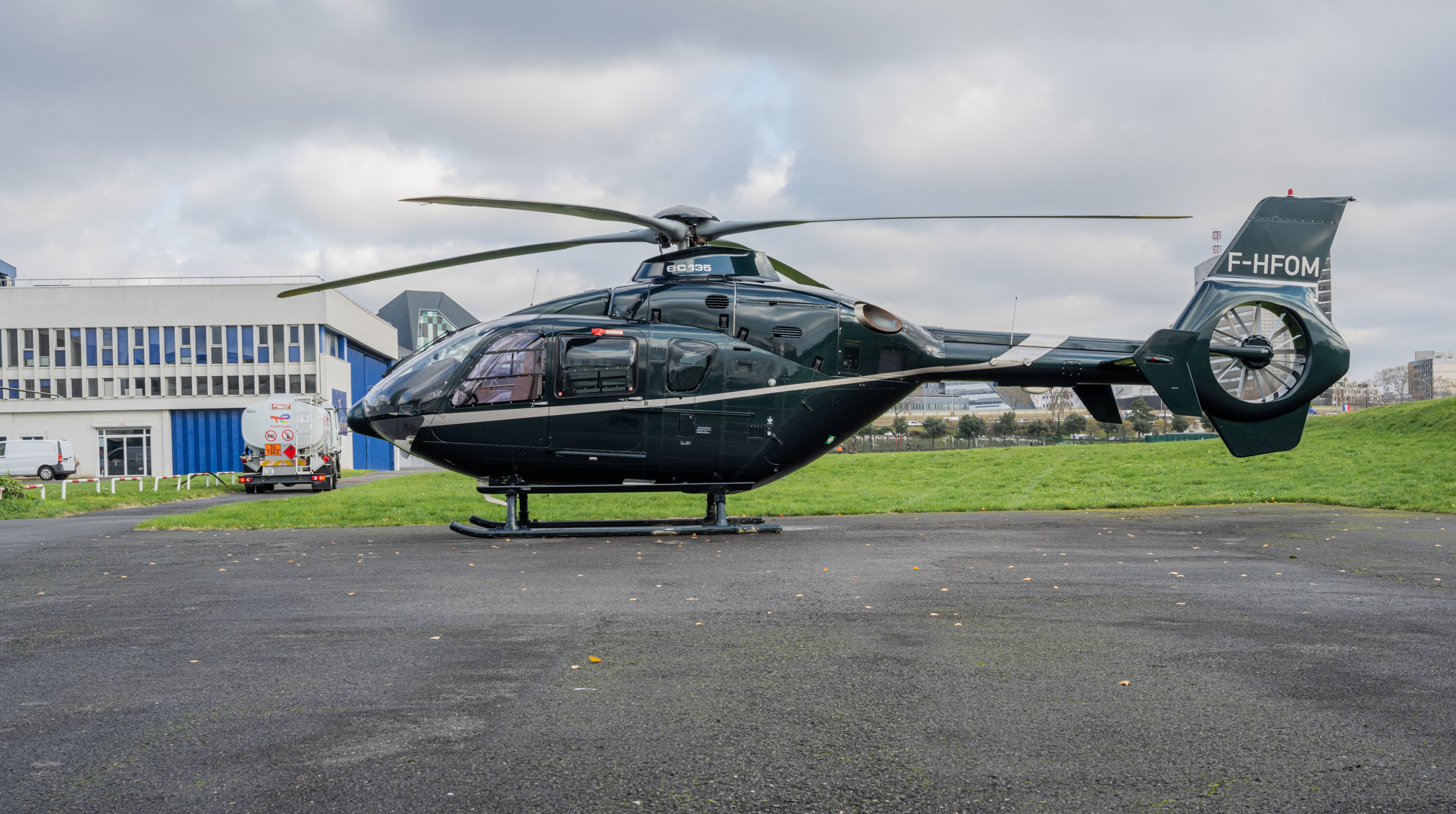

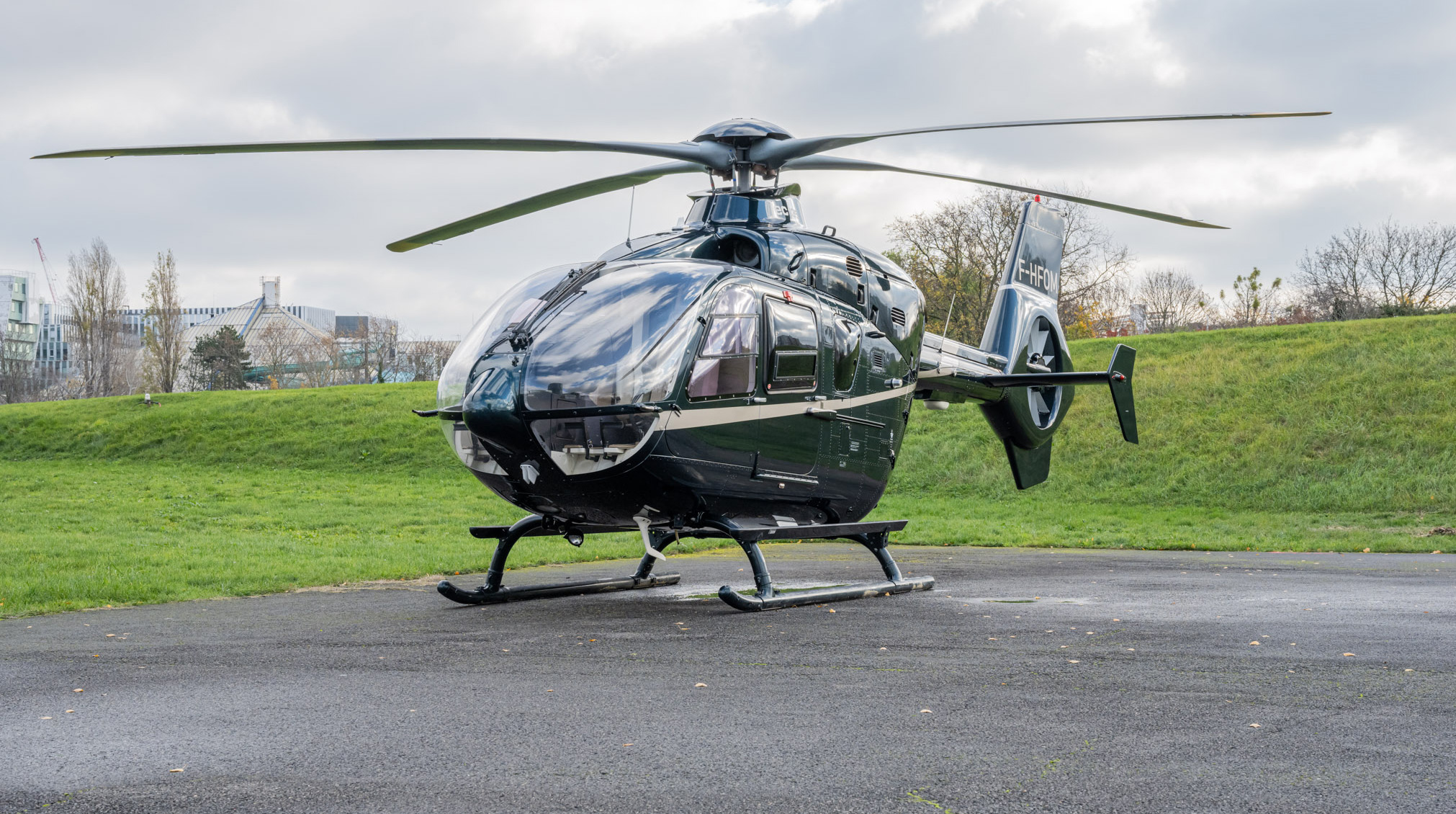

2007 Airbus EC135T2+ (T2e)

S/N: 581 | TBD

Asking price EUR 2.795m

Total Hours
1979 hours since new

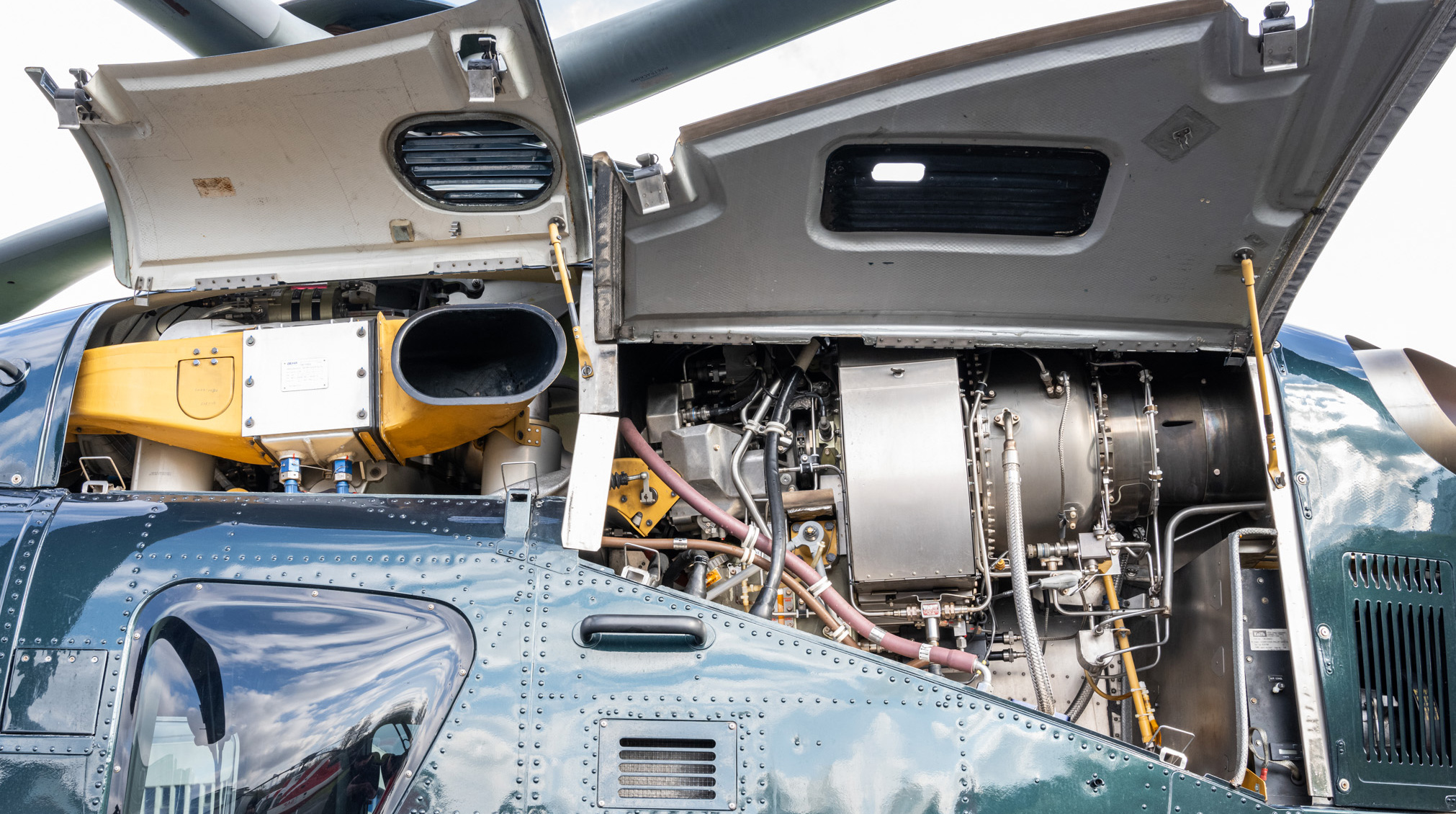

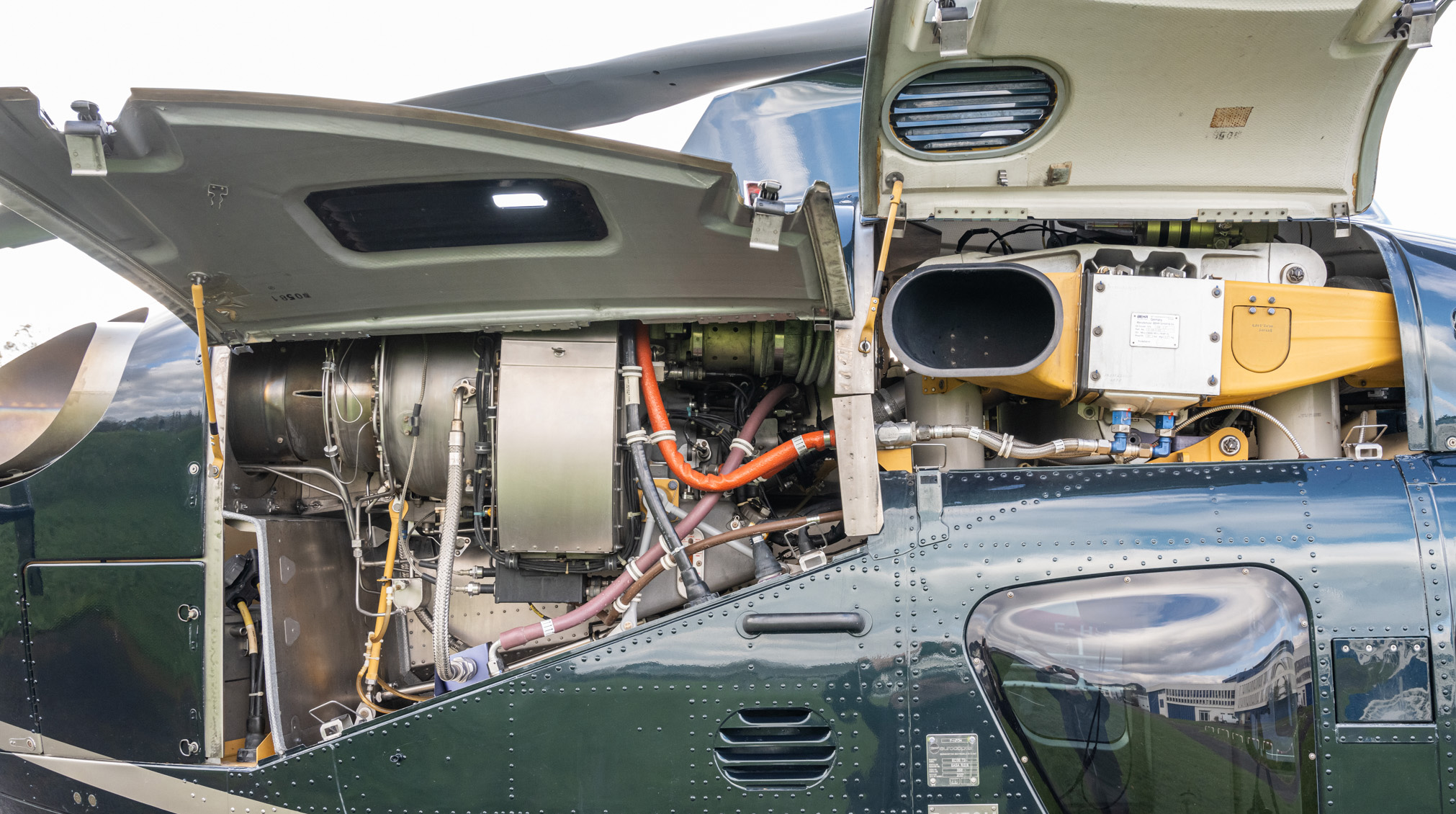

Engines
TURBOMOTEUR ARRIUS 2B2


# S/N TSN N1 Cy PT Cy
1 32254 5,856 4,204 11,195
2 32358 1,979 1,024 2,668

Highlights

  • SP/DP IFR
  • Wx Radar
  • Aircon
  • Dual Controls
  • Emergency Floats - Fixed Parts
  • 2950 kg increased grossed weight (T2e)

Download Full Specs

Details

AIRCRAFT FEATURES

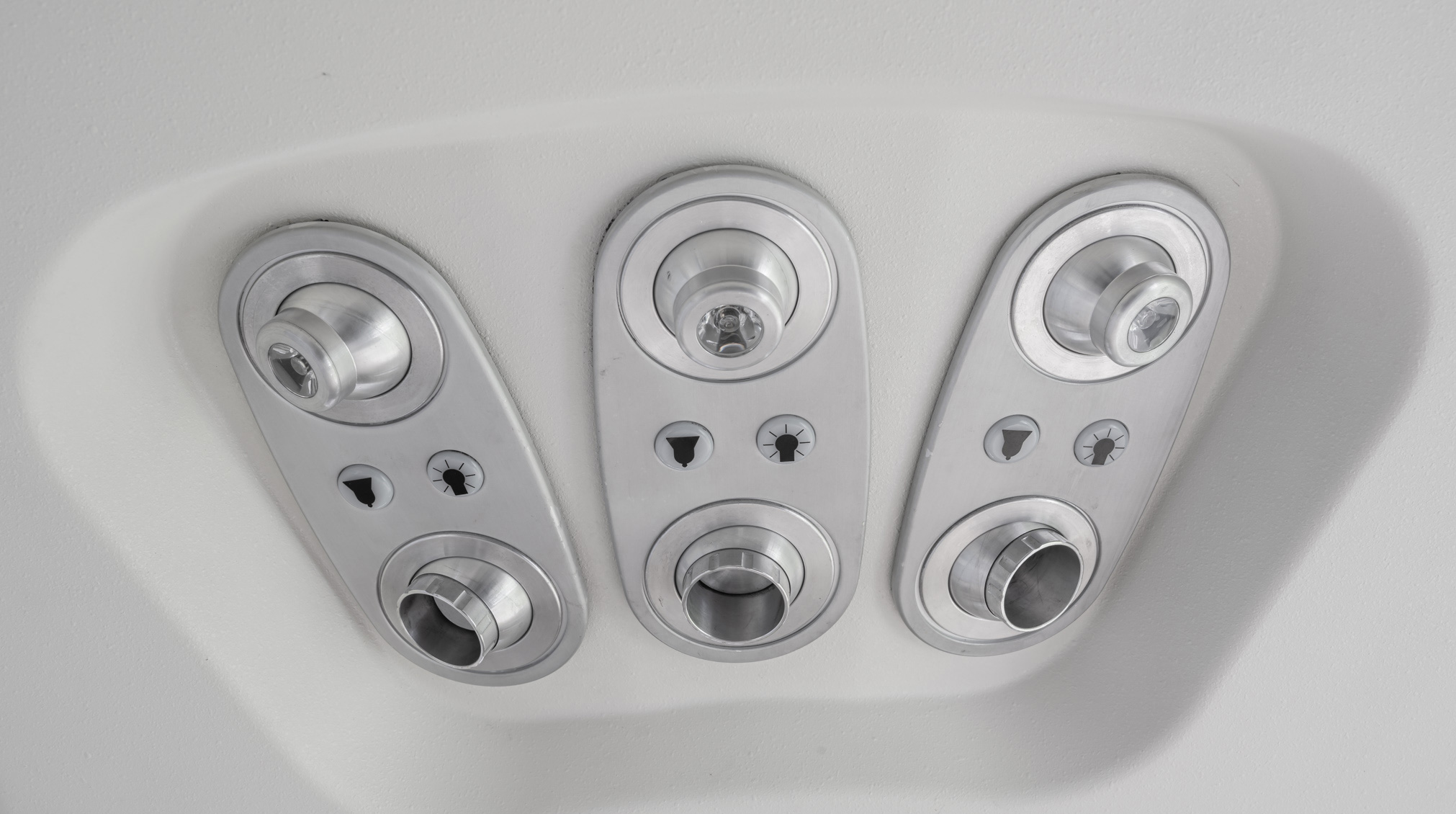

  • Air Conditioning System (Electrical)

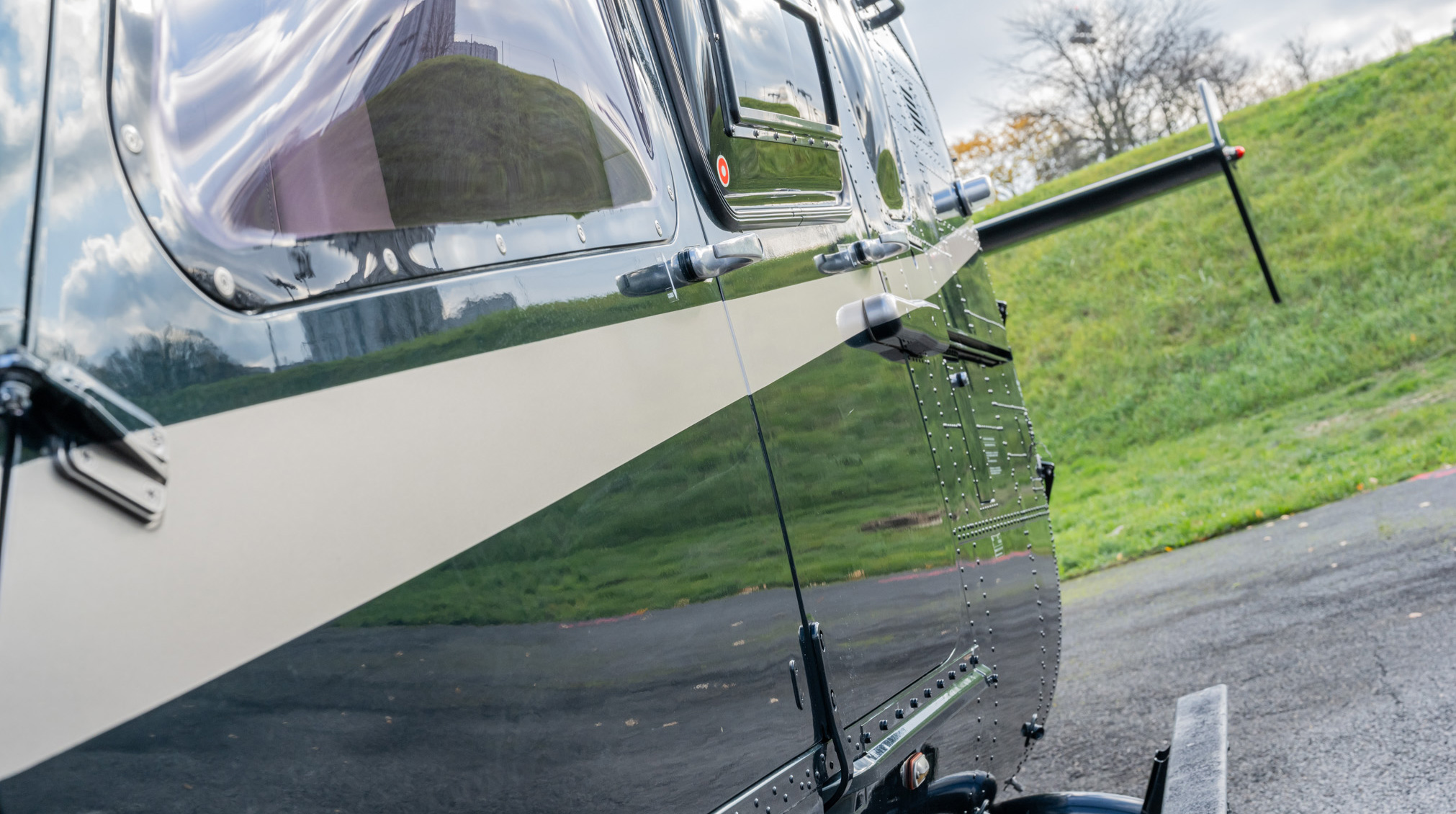

  • Sliding Door Sliding Window × 2
  • Windshield Wiper
  • Dual Controls
  • "Varta" Battery 40 Ah, 24 V
  • Landing & Search Light (450W )
  • Strobe Lights, White x 2
  • Emergency Floats - Fixed Parts
  • Auxiliary Fuel Tank - Removable Parts
  • 6 pax kit available (uninstalled)

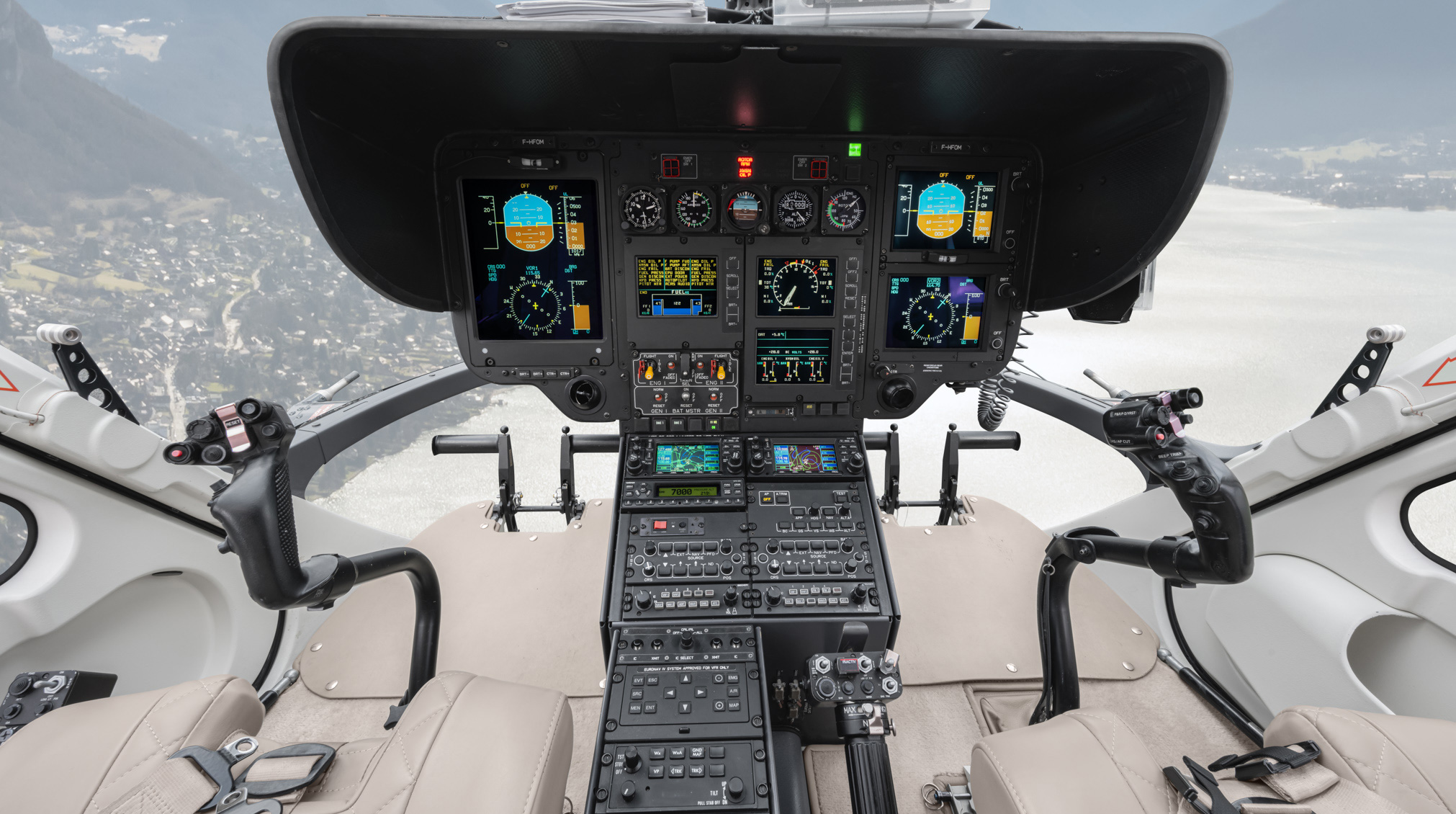

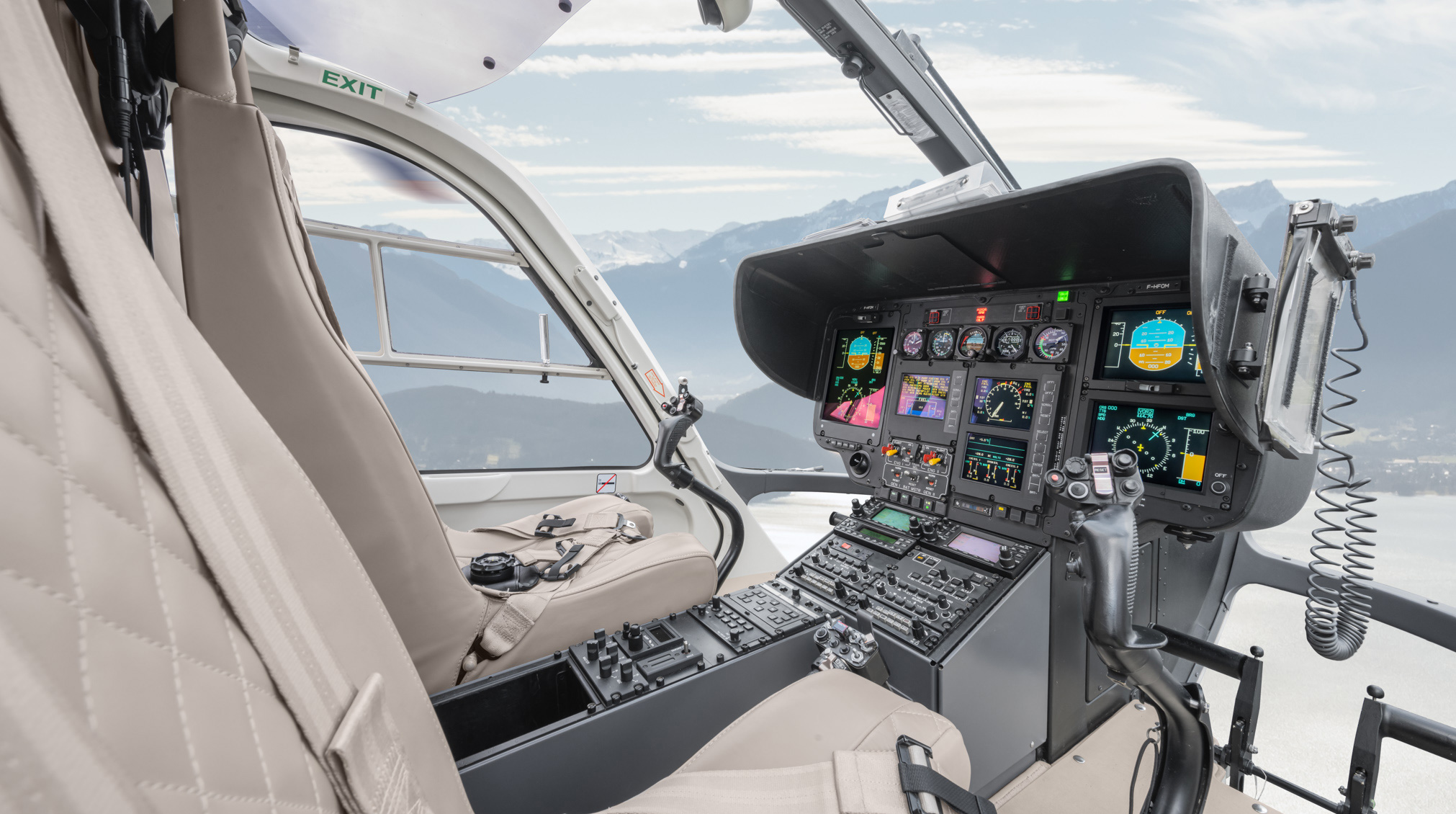

AVIONICS

  • SFIM APM2000 Autopilot x 1
  • DME DM-441B x 1
  • REC ADF DF-431B x 1
  • E/RR/AKRA 405B x1
  • Xpdr GTX330 x1
  • GPS GNS 430x2
  • ELTARTEX C406-NHM x 1
  • TCAS 9900BX x 1
  • Weather Radar ART 2000 x 1

COMPONENTS

  • DESCRIPTION REMAINING
    Main Rotor Blade x 4 OC
    Damper Assy Set (Hardened) x 4 OC
    Damper Assy (Hardened) x 4 6,03 m
    Damper Assy (Hardened) x 1 6,00m
    Damper Assy (Hardened) x 2 9,03 m
    Damper Assy (Hardened) x 1 9,03m
    Blade Bolt x 8 14020,02 h
    Basic Main Gearbox x 1 2020,02 h
    Hub-Shaft Assy, Main Rotor x 1 28020,02 h
    Main Rotor Mast Hub x 1 OC
    Swashplate x 1 OC
    Ring (Control Ring) x 1 8720,02 h
    Ring (Bearing Ring) x 1 OC
    Cardan Ring x 1 12320,02 h
    Bolt x 2 12320,02 h
    Bolt (Sliding Sleeve) x 2 12320,02 h
    Support Tube x 1 18020,02 h
    Upper Housing, Mgb x 1 18020,02 h
    Lower Housing, Mgb x 1 10620,02 h
    Intermediate Shaft, Mgb x 2 28020,02 h
    Pignon Shaft x 1 18020,02 h
    Bevel gear x 2 28020,02 h
    Output Pinion, Tail Rotor x 1 28020,02 h
    Input Pinion, Mgb x 2 10020,02 h
    Collector Gear x 1 16020,02 h
    Collector Shaft x 1 16020,02 h
    Spacer Tube Assy x 1 OC
    Main Drive Shaft (Lucas) x 2 OC
    T/R Drive Shaft, Short, Fwd x 1 OC
    T/R Drive Shaft, Long x 1 OC
    Tube, T/R Drive Shaft x 1 18020,02 h
    Coupling Flange x 2 18020,02 h
    Sleeve, Rubber x 6 30,08 m
    T/R Drive Shaft, Short, Aft x 1 OC
    Ball Bearing Control x 1 OC
    Tail Rotor Gearbox x 1 3020,02 h
    Flange, Input x 1 18020,02 h
    Gear, Input x 1 6020,02 h
    Wheel, Output x 1 9020,02 h
    Tail Rotor Head x 1 OC
    Tail Rotor Blade Assy x 10 10020,02 h
    Tail Rotor Hub x 1 25420,02 h
    Flange, Splined x 1 18020,02 h
    Tail Rotor Pitch Change Spider x 1 OC
    Flange, Central x 1 OC
    Mixing Lever Gear Unit x 1 OC
    Fork Lever Assy x 1 8420,02 h
    Support Assy, Hinged x 1 OC
    Support, Hinged x 1 17020,02 h
    Bolt x 1 17020,02 h
    Control Rod Assy x 3 OC
    Control Rod x 3 OC
    Main Rotor Actuator x 1 OC
    Mh Actuator, Longitudinal x 1 4090,41 h
    Mh Actuator, Lateral x 1 5531,53 h
    Mh Actuator, Collective x 1 5531,53 h
    Mh Actuator, Collective x 1 18031,53 h
    Casing Assy, Main Rotor Actuator x 1 18031,53 h
    Fenestron Servo Actuator x 1 OC
    Pressure supply assy x 1 OC
    Hydraulic Valve Bloc x 2 OC
    Hydraulic Pump x 1 5788,57 h
    Pressure Supply Assy x 1 OC
    Hydraulic Pump x 1 5520,02 h
    Fuel Pump x 4 OC
    Fuel Pump Cartridge x 1 3020,02 h
    Fuel Pump Cartridge x 1 3875,07 h
    Fuel Pump Cartridge x 1 4009,57 h
    Fuel Pump Cartridge x 1 3537,27 h
    Torque Strut Assy x 2 OC
    Anti-Resonance Isolation System (Z-Aris) x 4 OC
    Battery, 40 Ah [Saft] x 1 OC
    Starter Generator x 1 677,21 h
    Starter Generator x 1 578,23 h
    Electrical Master Box, Rh x 1 OC
    Electrical Master Box, Lh x 1 OC
    Electrical Master Box, Battery x 1 OC
    Flight Control Display Module (Fcdm) x 2 OC
    Smart Multifunction Display (Smd45) x 2 OC
    Vemd (V2005 Nvg T2+/P2+) x 1 OC
    Caution Advisory Display (Cao) x 1 OC
    Rate Gyro Unit, Optical Fiber x 2 OC
    Trim Actuator, Pitch Or Roll x 2 OC
    Actuator, Serie, Sas & Ap x 2 OC
    Actuator,  Yaw, Sas & Ap x 2 OC
    Air Data Computer, Adu 3000 x 2 OC
    Elt, Artex C406-Nhm x 1 OC
    Battery, Elt, Artex C406 Serie x 1 734,00 d
    Elt Remote Control Unit x 1 OC
    Lithium Battery x 1 2287,00 d
    Anti Collision Light x 1 OC
    Mixing Valve x 1 OC
    Fire Extinguisher, Cabin x 1 OC
    Fire Extinguisher, Cabin x 1 826,00 d
    28,81 m
    Fire Extinguisher, Engine x 1 30,26 m
    Cartridge, Engine Fire Extinguisher x 2 30,26 m
    90,26 m
    Safety Harness, 5 Points x 2 OC
    3 Point Automatic Harness (Pax) x 5 OC
    Computer, Sas x 1 OC
    Apm 2000 Autopilot Module (Sw E6_26) x 1 OC
    Auto Pilot Mode Selector Apms 2000 x 1 OC
    Circular Frame, Fwd, X5730 x 1 5720,02 h
    Circular Frame, Aft, X9227, Strengthened x 1 OC
    Indicator, Triple, N2/Nr x 1 OC
    Engine, Arrius 2B2 x 2 OC
    Module 01 : Reduction Module x 1 1247,30 h
    Conformation  Box, Torque Or T4 x 2 OC
    Module 02:  Gaz Generator x 1 1000,13 h
    Centrifugal Impeller x 1 15795,31 Cy
    Turbine Disc, Hp x 1 881,46 Cy
    Blades, Hp Turbine x 1 6001,13 h
    1607,75 Cy
    Power Turbine Disc x 1 4073,71 Cy
    Blades, Power Turbine x 1 6870,08 h
    9773,12 Cy
    High Energy Box (He 3201A Model) x 1 OC
    Cable, Igniter x 1 OC
    Electronic Control Unit x 2 OC
    Pressurizing Valve Assy, Adjusted x 1 OC
    Starting Electrovalve x 2 OC
    Adjusted Drain Valve Assy x 1 OC
    Lubrification Unit x 1 OC
    Burner, Permanent, Fuel (Tu 117A 2B2) x 1 670,08 h
    Switch, Low Fuel Pressure, Post Tu76 x 2 OC
    Switch, Fuel Filter Pre-Clogging x 2 OC
    Pump & Metering Valve Assy 282 Tu143 x 1 2542,05 h
    95,60 m
    Fuel Manifold, Half, Rh (Tu 117A 2B2) x 1 670,08 h
    Fuel Manifold, Half, Lh (Tu 117A 282) x 1 670,08 h
    Module 01 : Reduction Module x 1 2020,02 h
    Bearing, Drive Gear x 2 OC
    Bearing, Intermediate Gear x 2 OC
    Bearing, Fwd, Output Gear x 1 OC
    Bearing, Output Gear x 1 OC
    Bearing, Torquemeter x 1 OC
    Bearing, Reference Shaft x 1 OC
    Bearing, Fwd x 1 OC
    Module 02: Gaz Generator x 1 1520,02 h
    Centrifugal Impeller x 1 18975,74 Cy
    Turbine Disc, Hp x 1 11975,74 Cy
    Blades, Hp Turbine x 1 7020,02 h
    8975,74 Cy
    Power Turbine Disc x 1 11331,88 Cy
    Blades, Power Turbine x 1 5020,02 h
    7331,88 Cy
    Bearing, Fwd, Gaz Generator x 1 OC
    Bearing, Aft, Gaz Generator x 1 OC
    Bearing, Power Turbine x 1 OC
    Conformation Box, Torque Ort4 x 1 OC
    High Energy Box (He 3200 Model) x 1 OC
    Pressuring Valve Assy,  Adjusted x 1 OC
    Burner, Permanent, Fuel (Tu 117A 2B2) x 1 668,08 h
    Pump & Metering Unit Assy 2B2 Tu139 x 1 2170,33 h
    42,45 m
    Fuel Manifold, Half, Rh (Tu 117A 2B2) x 1 668,08 h
    Fuel Manifold, Half, Lh (Tu 117A 2B2) x 1 668,08 h
    Sw\Tch Unit 20Ve x 1 OC
    Instrument Control Panel (Icp) x 2 OC
    Blowerassy x 1 OC
    Aux Fuel Tank x 1 OC
    Ics, Becker, As3100-12 x 2 OC
    Dme Transceiver, Dm-441B x 1 OC
    Receiver Adf Df-4318 x 1 OC
    E/R Gps/Nav/Com, GNS 430 x 2 OC
    Marker Rece\Ver, Kr 21 x 1 OC
    Transponder, Gtx 330 x 1 OC
    Transceiver, Ria, Kra 405 B x 1 OC
    Altimeter (Thommen) x 1 OC
    Attitude Indicator, Stand By x 1 OC
    Emergency Power Supply, Ps-835C x 1 OC
    Processor, Tas 620 x 1 OC
    Stand By Compass (Nvis Green B) x 1 OC
    Chronograph x 1 OC
