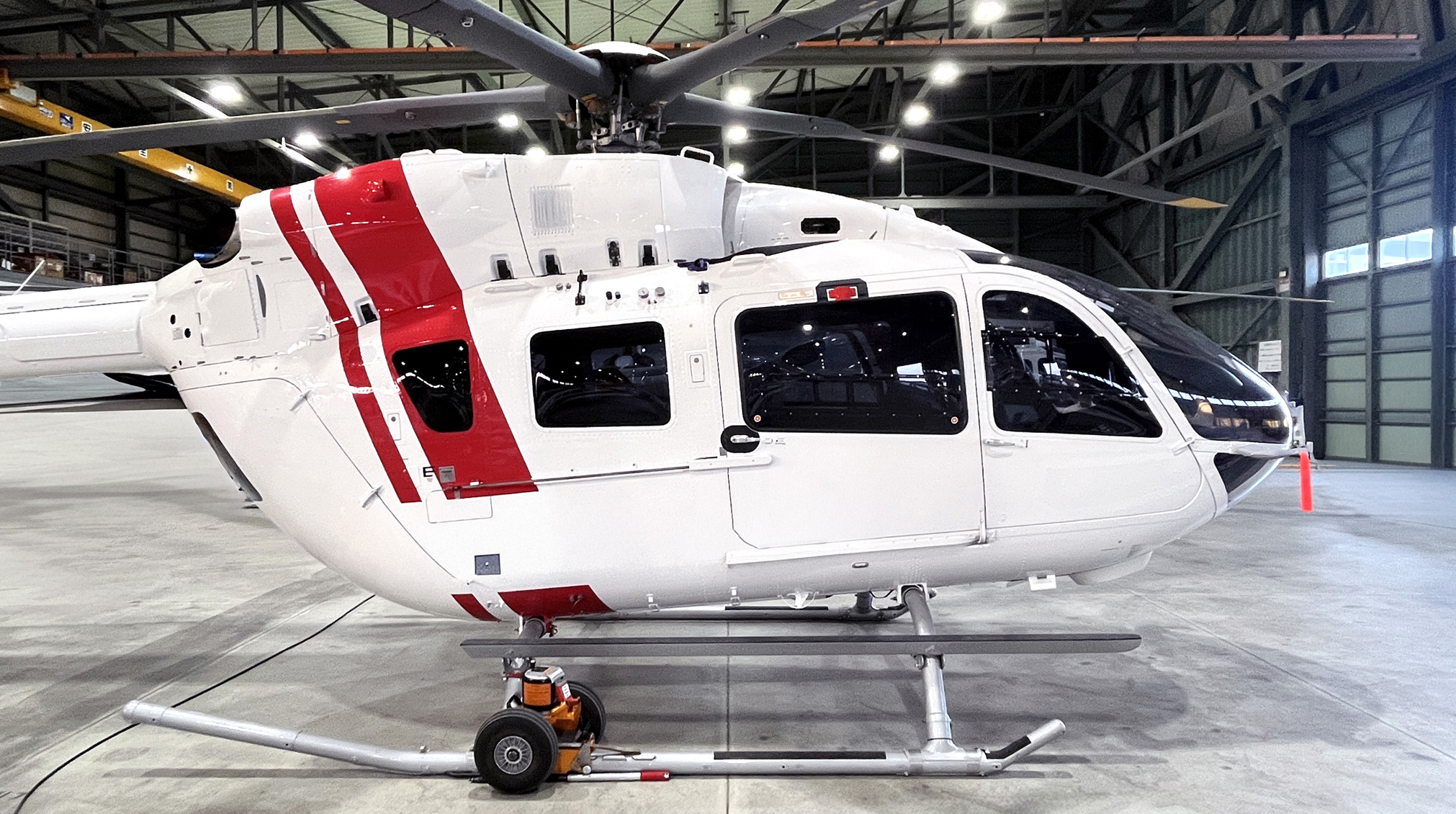

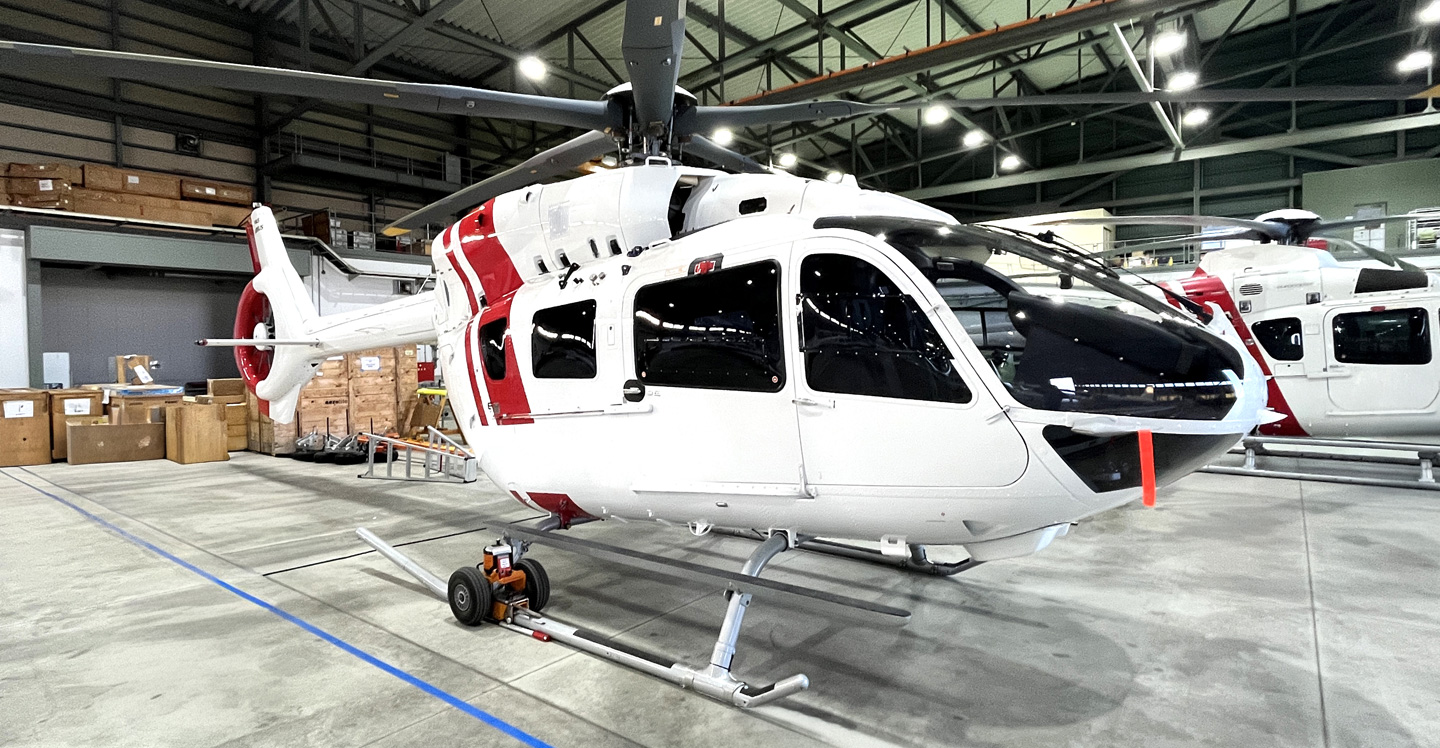

2024 Airbus H145 D3

Details

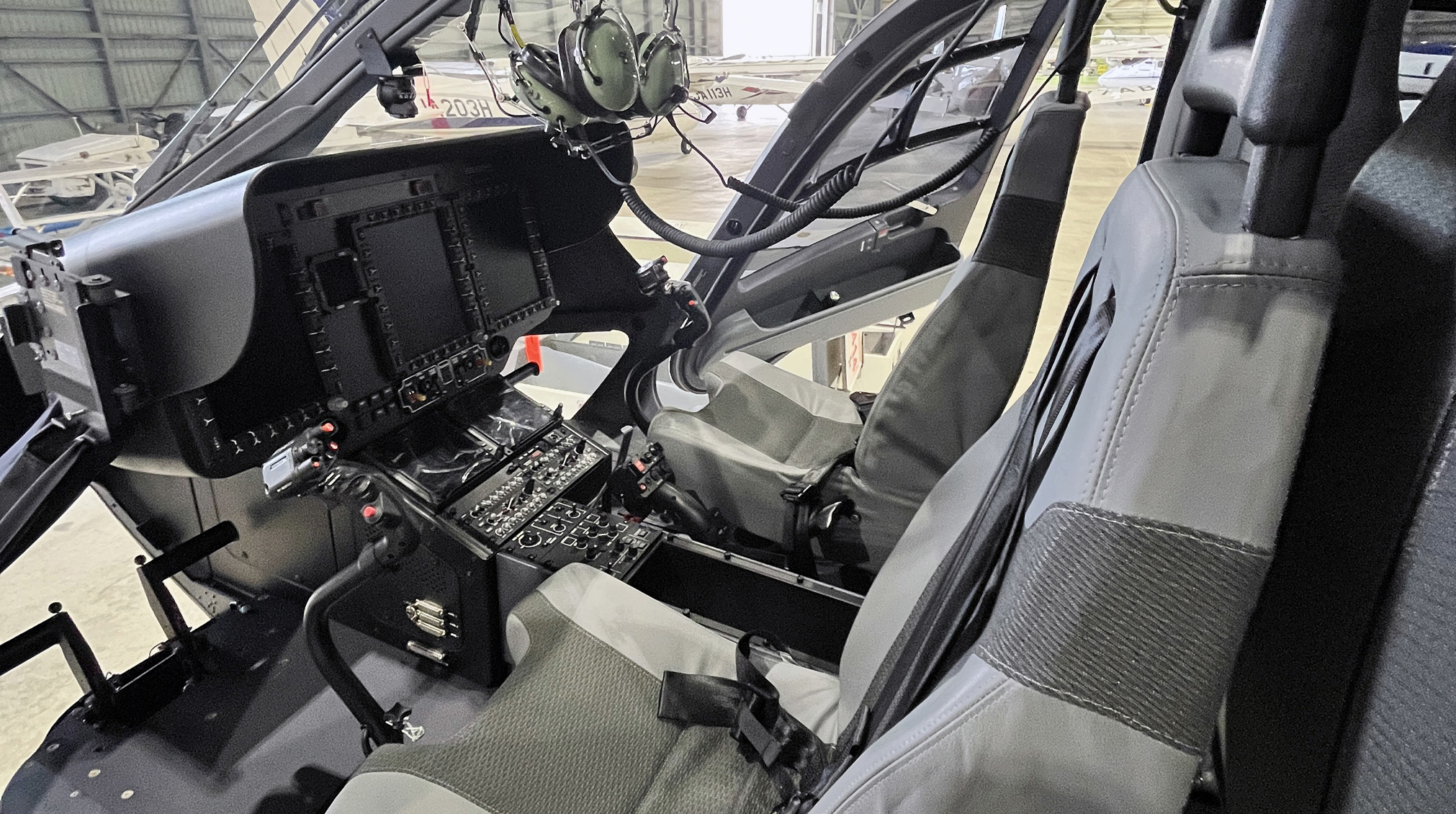

BASIC INSTRUMENTATION

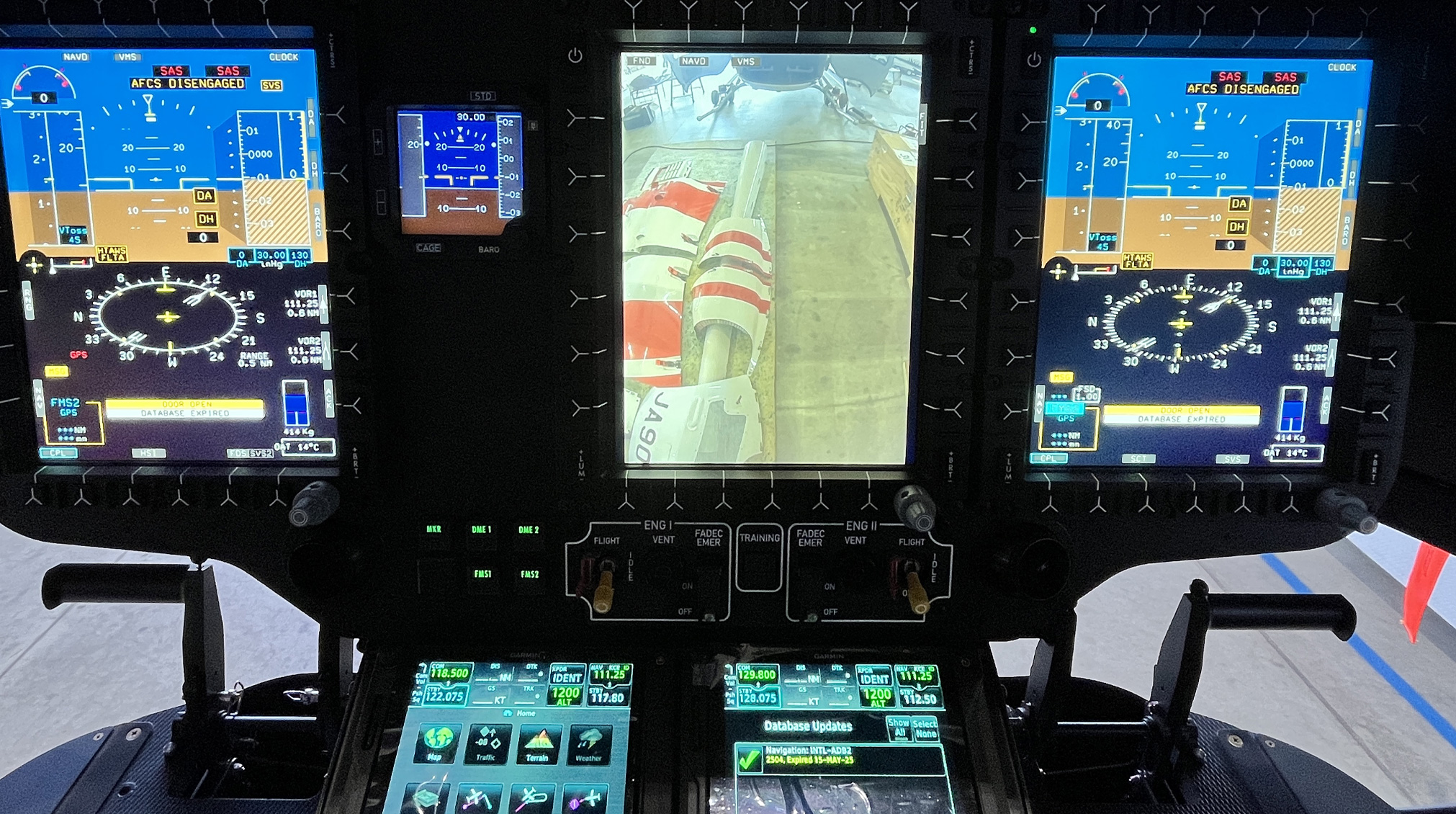

• Flight Display Subsystem (FDS) composed of 2 smart multifunction displays (6 x 8 inch) providing the following functions:
  • Flight Navigation Display (FND) format (incl. PFD, FLI, Master list, NAV, RPM, mast moment & fuel indication
  • Vehicle Monitoring System (VMS) format (incl. engine, gearbox, hydraulic, fuel, electrical system, RPM and clock indication)
• Vehicle Management System (VMS) including:
  • 2 duplex Aircraft Management Computer (AMC)
  • Reference sensors:
  • 3 Attitude and Heading Reference Systems (AHRS)
  • 2 Air Data sensors (electrically heated pitot tube and static port)
  • 2 Three Axis Magnetometers (TAM)
• Stand-by instruments:
  • Integrated Electronic Standby Instrument (IESI)
  • Stand-by compass
  • Usage Monitoring System (UMS)
  • Flight Data Continuous Recorder (FDCR)
  • “One hundred feet“ alert
  • Directional Gyro Free Steering Mode
• Warning unit:
  • Engine fire warning with fuel emergency shut-off
  • Warning lights
  • Fire extinguishing system warning
  • Cockpit Control Panel (CCP) for FDS
  • Wireless Airborne Communication Server (wACS)
• Engine switch panel:
  • Digital engine control (FADEC)
  • Radar altimeter

AVIONICS LAYOUT

• Single / Dual Pilot IFR with Dual GTN 750Xi
• Digital Voice Control System (DVCS 6500) incl. AMU6510 (Becker), pilot + copilot
• Transponder Lynx NGT9000R+ (ACSS)- Incl. ADS-B out, ADS-B in, TCAS I.
• Distance Measuring Equipment (DME) DME-4000 (Rockwell Collins)
• Marker beacon receiver MKR3300-1 (Becker)
• GPS/NAV/COM GTN 750Xi (Garmin), copilot
• GPS/NAV/COM GTN 750Xi (Garmin), pilot
• Wireless connectivity Flight Stream 510 (Garmin) 0.0 0.0
• Flight Display Subsystem (FDS), copilot 5.0 11.0
• Avionics Package SP/DP IFR GTN Series interconnection / wiring
• TCAS (Avidyne TAS620A)

OPTIONAL EQUIPMENT

• Air conditioning System
• IBF - Inlet Barrier Filter
• External Hoist – Fixed provision
• Snow skid – Fixed provision
• Emergency Floats – fixed provision with landing gear extension
• Wire strike – fixed provision
• Smoked Windows
• Sun Visors
• Clamshell doors windows (left/right)
• Strobe – anticollision light
• Jettison-type cabin door
• Slide door loc (both sides)
• LARS Camera
• Rear camera (tail boom)
• Search-landing light
• Tablet Holder – USB 5VDC (co-pilot)
• Fuel flow meter
• Reinforced clamshell doors hinges
• 44 AH Battery
• Bleed air improvement kit
• 3rd Audio panel in the cabin
• Additional maintenance handle

HEMS FIXED PROVISION

• Multipurpose hardpoints
• Multipurpose fittings
• EMS ceiling rails
• Sealed cabin floor

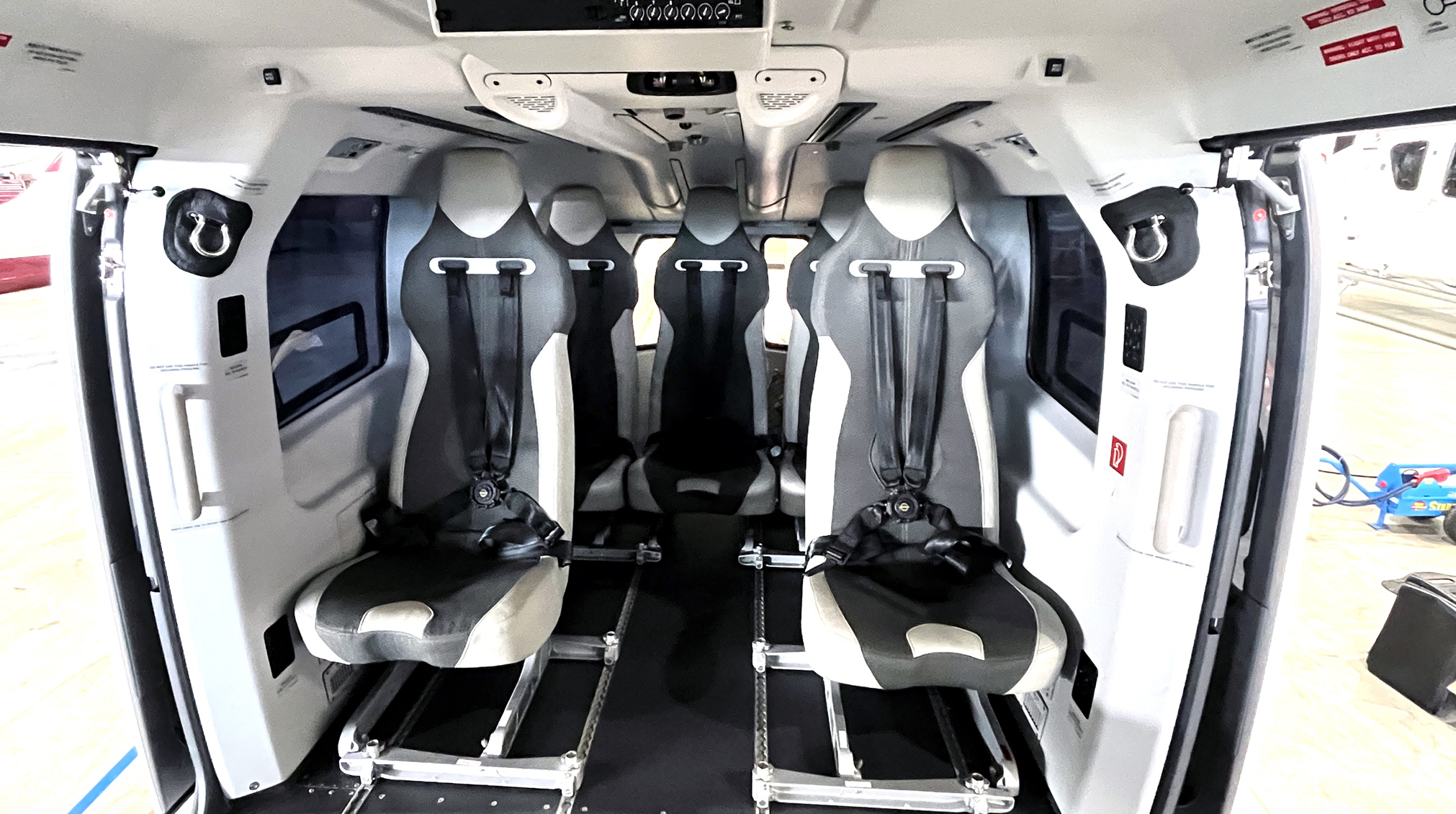

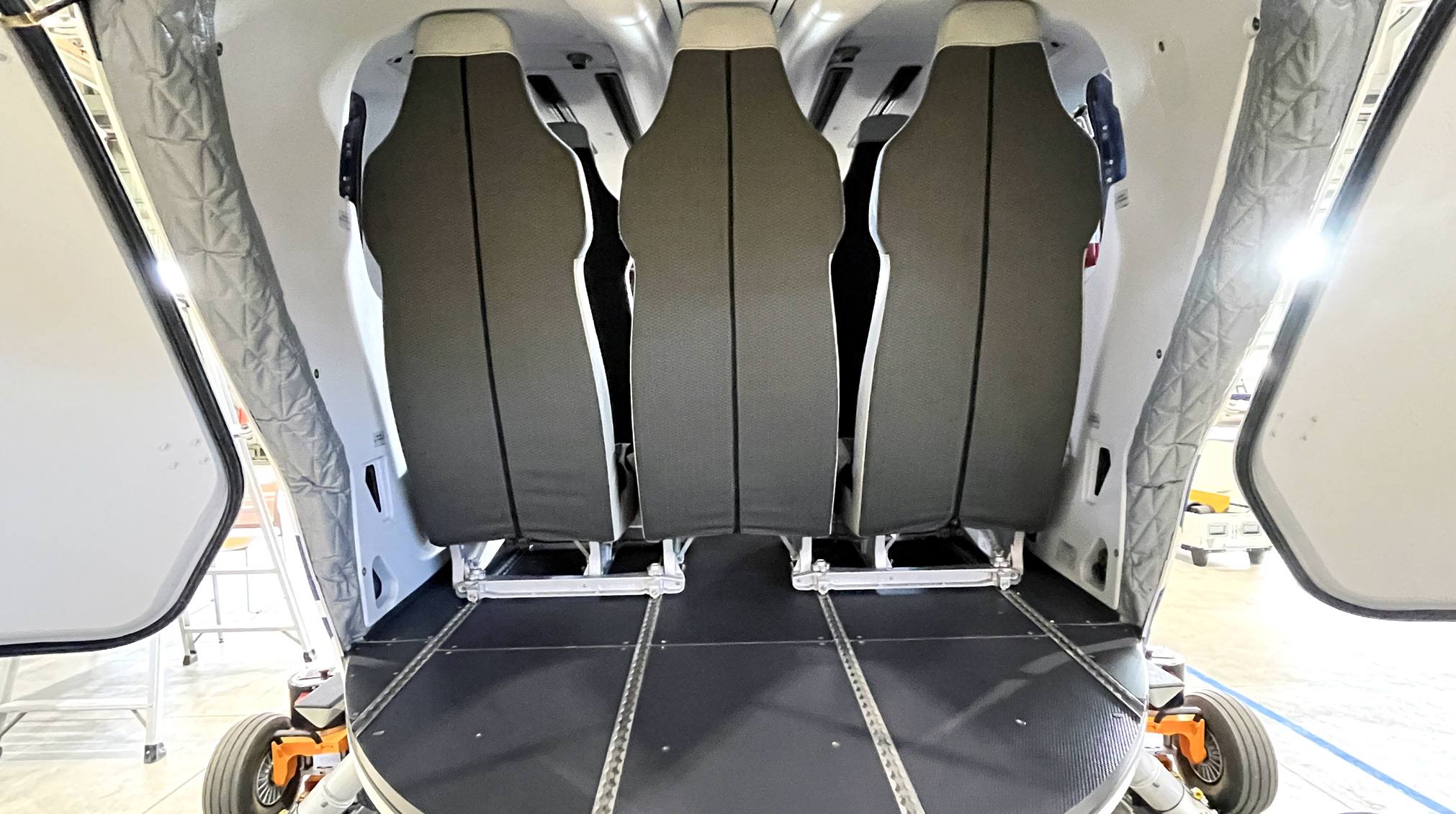

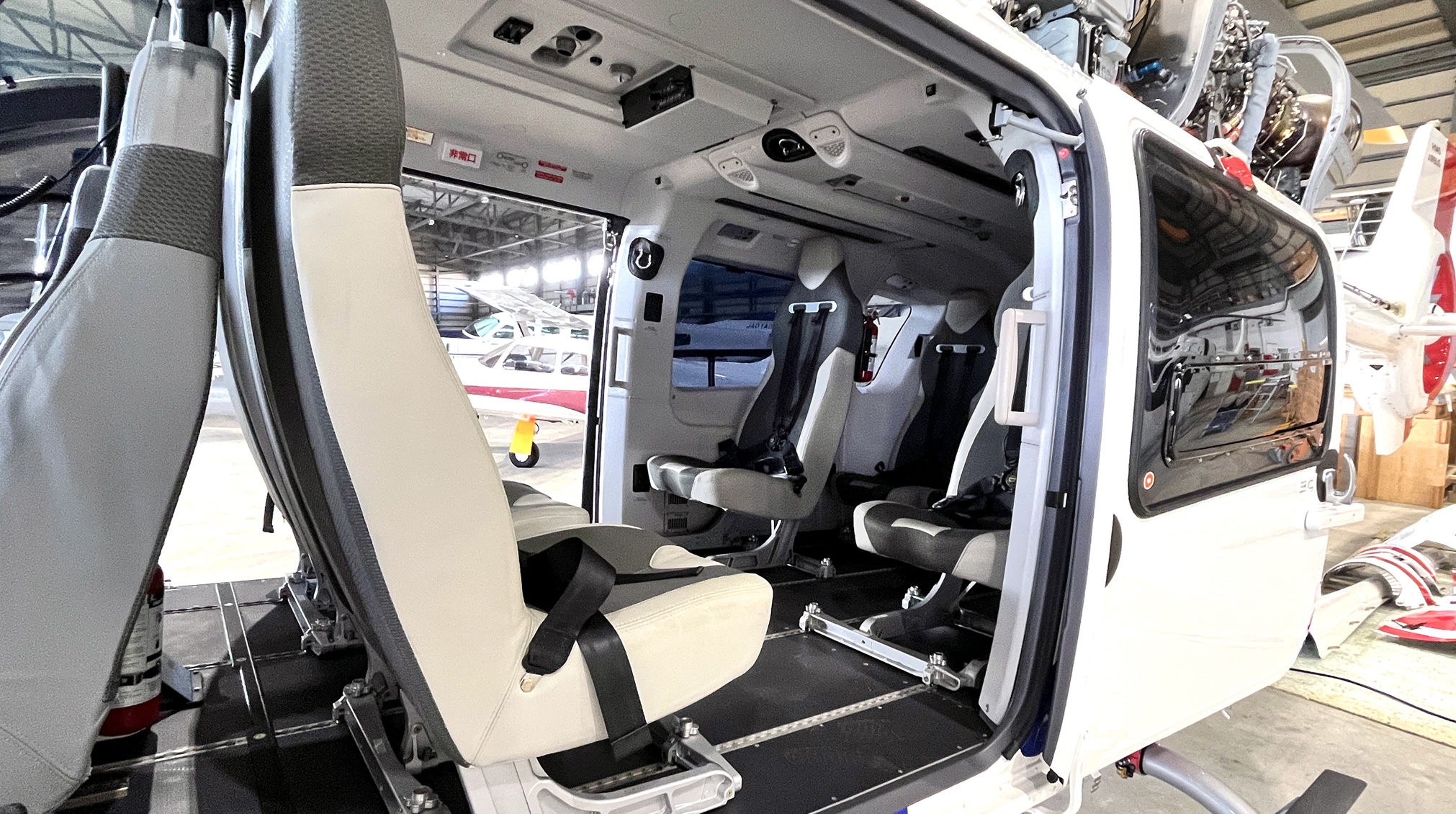

INTERIOR CONFIGURATION

• 8 PAX
• EMS provisions
